Steel Elbow – Ø90, RAL for Gutter Systems

Steel Elbow – Ø90, RAL 7016, RAL 9005 & Aluzinc

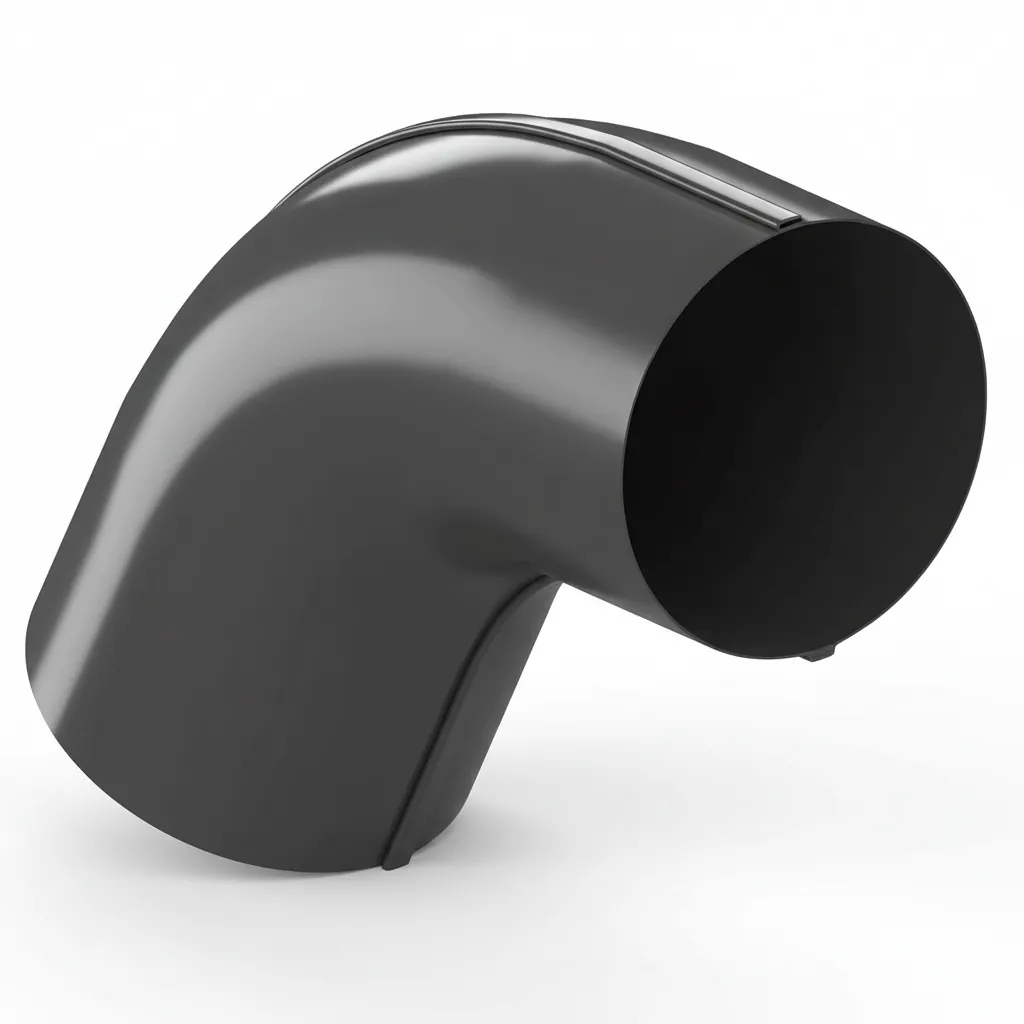

The elbow changes the direction of the downpipe. Its most common job is at the top of the run: the gutter sits out at the eaves, the wall is set back behind it, and a pair of elbows brings the pipe in from one to the other before it drops vertically down the elevation.

They are also what gets a pipe past an obstacle further down – a projecting plinth, a bay window roof, a porch – or angles the bottom of the run towards a gully that isn’t directly beneath it. Used in pairs facing opposite ways, elbows produce a neat offset; a short piece of pipe between them sets how far the run steps across.

The elbow is pressed from the same coated steel as the downpipe and finished to match, so a direction change looks like part of the design rather than a repair.

What this elbow works with

This fitting suits Ø90 steel downpipe. A complete downpipe run generally needs:

• Ø90 downpipe, 3 m – the pipe lengths themselves
• Gutter funnel Ø130/90 – the outlet where water leaves the gutter and enters the pipe
• Ø90 downpipe connectors – one at each joint between pipe lengths
• Ø90 downpipe brackets – to fix the pipe to the wall at regular intervals
• Ø90 spout – to finish the pipe at the bottom and throw water clear of the wall
• Ø90 rainwater catcher – where you want to divert water into a butt

Browse the full range on our Half Round Steel Gutter page, or see all our gutter systems.

How many do you need?

Allow two elbows per downpipe as standard – one below the gutter funnel and one where the pipe reaches the wall face. Add a further pair for each obstacle the run has to step around, and one more at the bottom if the pipe needs angling towards a gully. Measure the distance from the gutter back to the wall before ordering, since a wide overhang may need a short length of pipe between the two elbows. Send us a photo of your eaves and we will tell you what the run needs.

Colours

Available in RAL 7016 anthracite grey, RAL 9005 jet black and Aluzinc, matched to the downpipe, brackets, gutter and fittings in the same range. Other RAL shades can be supplied to order – contact us for availability.

Key features

• Changes the direction of Ø90 steel downpipe
• Used in pairs to offset the pipe from the eaves back to the wall
• Takes the run around plinths, bays, porches and other obstacles
• Pressed from the same coated steel as the downpipe
• Colour matched to the rest of the half-round steel range
• Available in RAL 7016, RAL 9005 and Aluzinc; other colours to order

Specification

Product codes

Other RAL colours available on request – please contact us to check availability. Use the gutter calculator to work out how many lengths, brackets, connectors and fittings your roof needs.
