WE SUPPLY STANDARD AND CUSTOM FLASHINGS

Find out below what information is needed to create custom element and how to order it. You can also go directly to our shop if you need simple ready made flashing

Custom Flashing

Made to your exact shapes, widths and measurements. Wide range of material types and colours available to choose from.

HOW TO ORDER

Standard Flashing

Ready-made trims and profiles for common roof details. Best option if you need your flashing fast.

Order Standard Flashing

Custom Flashings

THESE ARE EXAMPLES OF SHAPES & COLOURS AVAILABLE

Advance Type of Roofing Finish Elements

We can manufacture flashings in any shape necessary

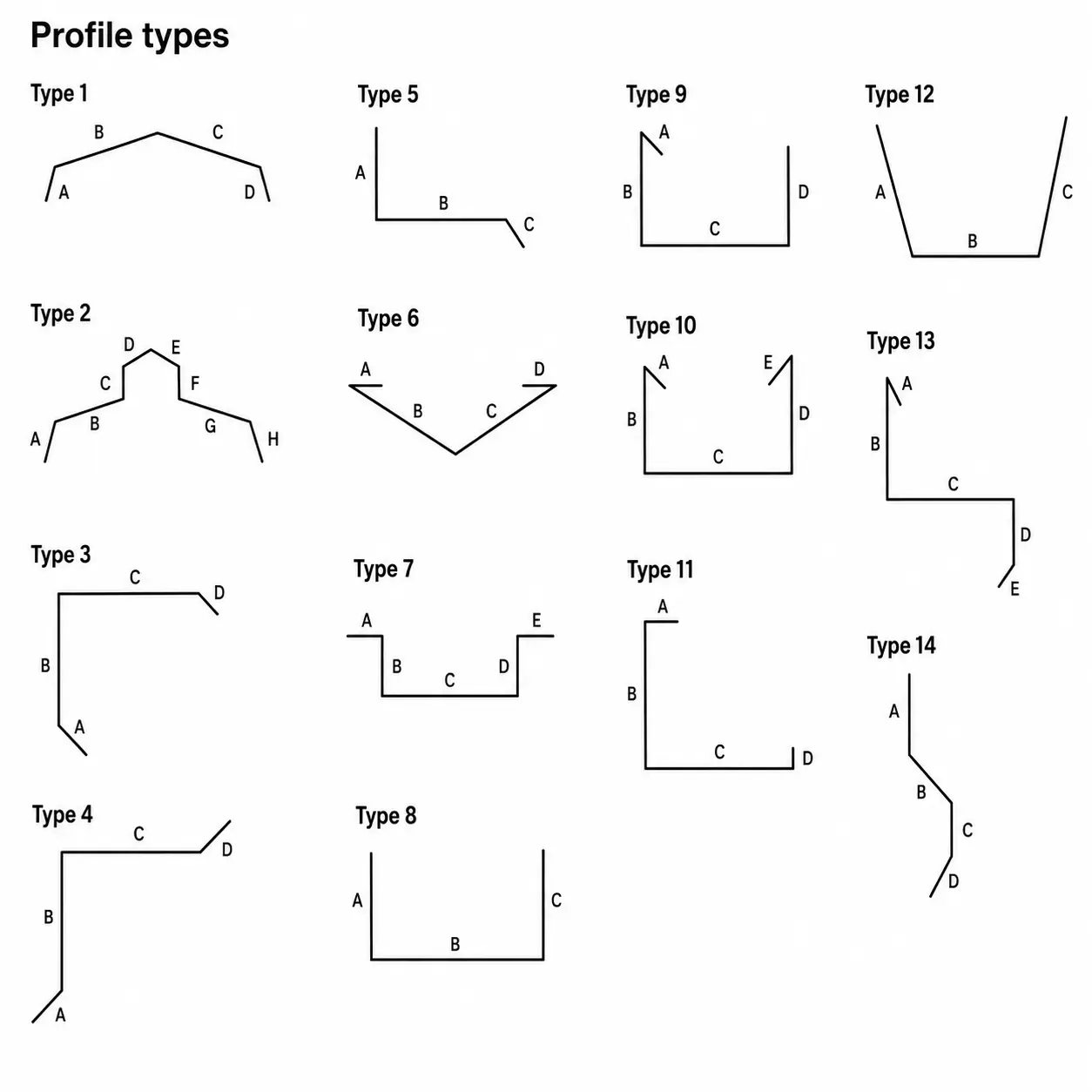

We also provide flashings and trims for any of your other projects. Please see the pictogram for examples of custom flashing shapes. If you require bespoke flashings please send us request. More details about how to order your custom flashings below.

Various Colours Available

These can be supplied in the same colour and coating as the roof panels. If you need a specific colour or coating, we have a wide range available to choose from.

Step By Step

HOW TO ORDER CUSTOM FLASHINGS

You can send us a simple bending schedule via email or the contact form.
This bending schedule does not need to be professionally drawn, a hand-drawn sketch will be sufficient for us.
Please include as many required measurements as you have.

GATHER INFORMATION

PREPARE INFORMATION NEEDED TO CREATE THE FLASHING

- SIDE OF THE COLOUR(COATING)
- DEGREES OF EACH ANGLE
- LENGHT OF EACH SIDE

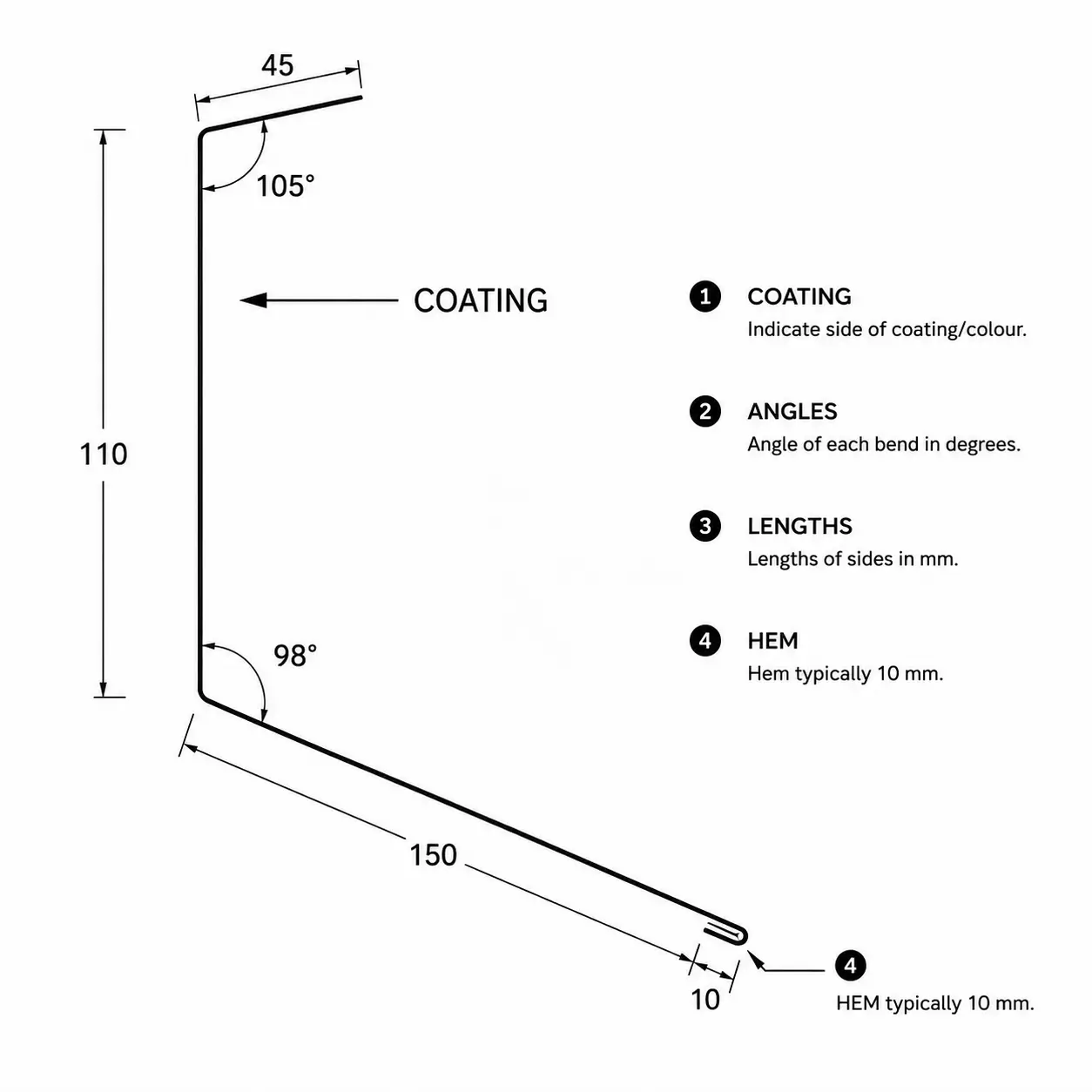

Information required to create your custom flashing

When you have these information ready

Send us your details included with simple drawing as shown below. We will provide you with qotation and in case if any information is missing we will let you know.

EXAMPLES OF HOW TO DRAW A SCHEDULE FOR A MADE TO MEASURE FLASHING

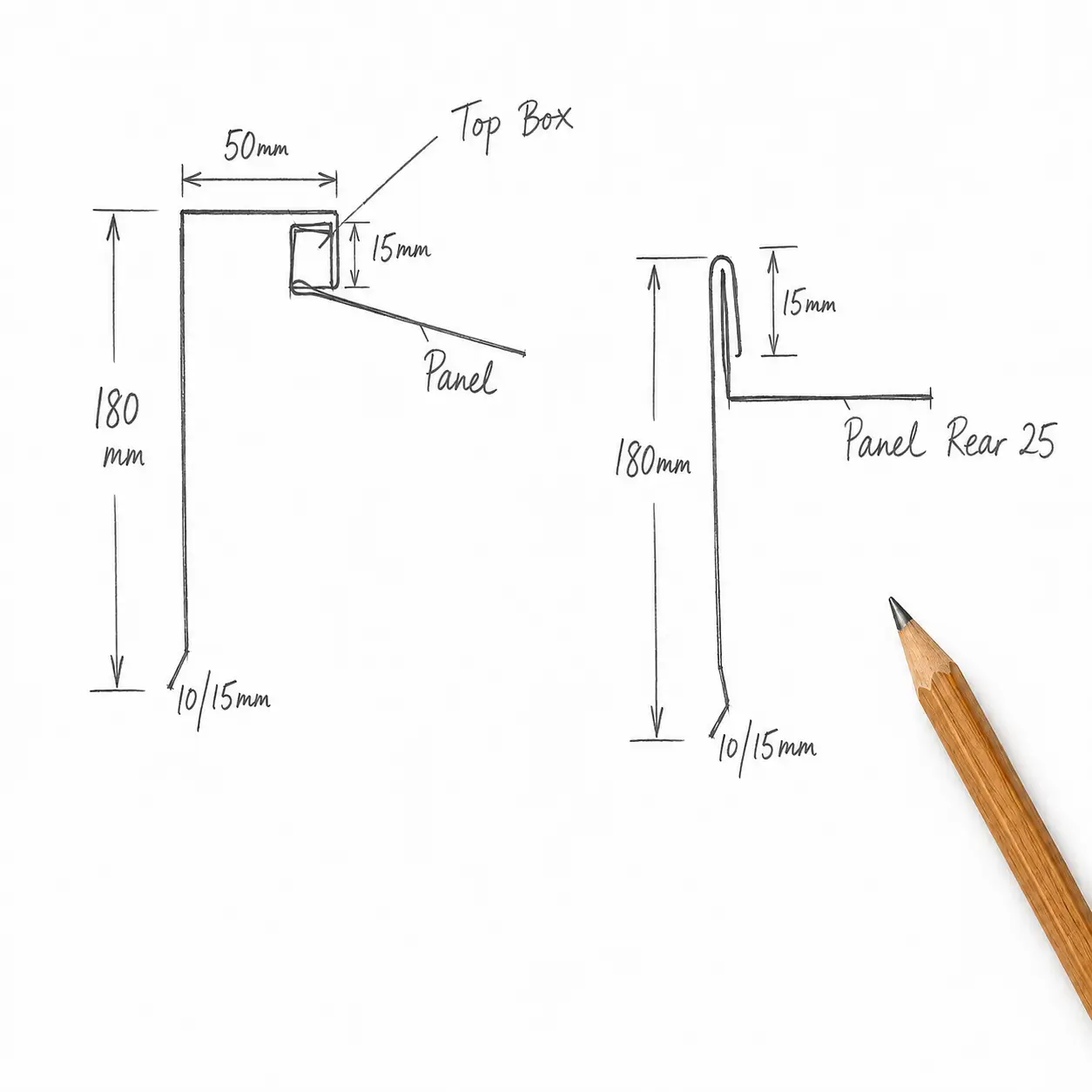

OPTION 1 - HAND DRAWING

OPTION 1

Hand drawing

What we need from you.

Sketch the profile freehand on paper, including the lengths of each section (in mm), the bend angles, the side for the coating/colour, and any preferred hem locations (a 10 mm hem is typically recommended). Take a clear photo of your sketch and send it to us. Even a simple hand-drawn outline with approximate measurements is enough for us to prepare an accurate quote and proceed with production.

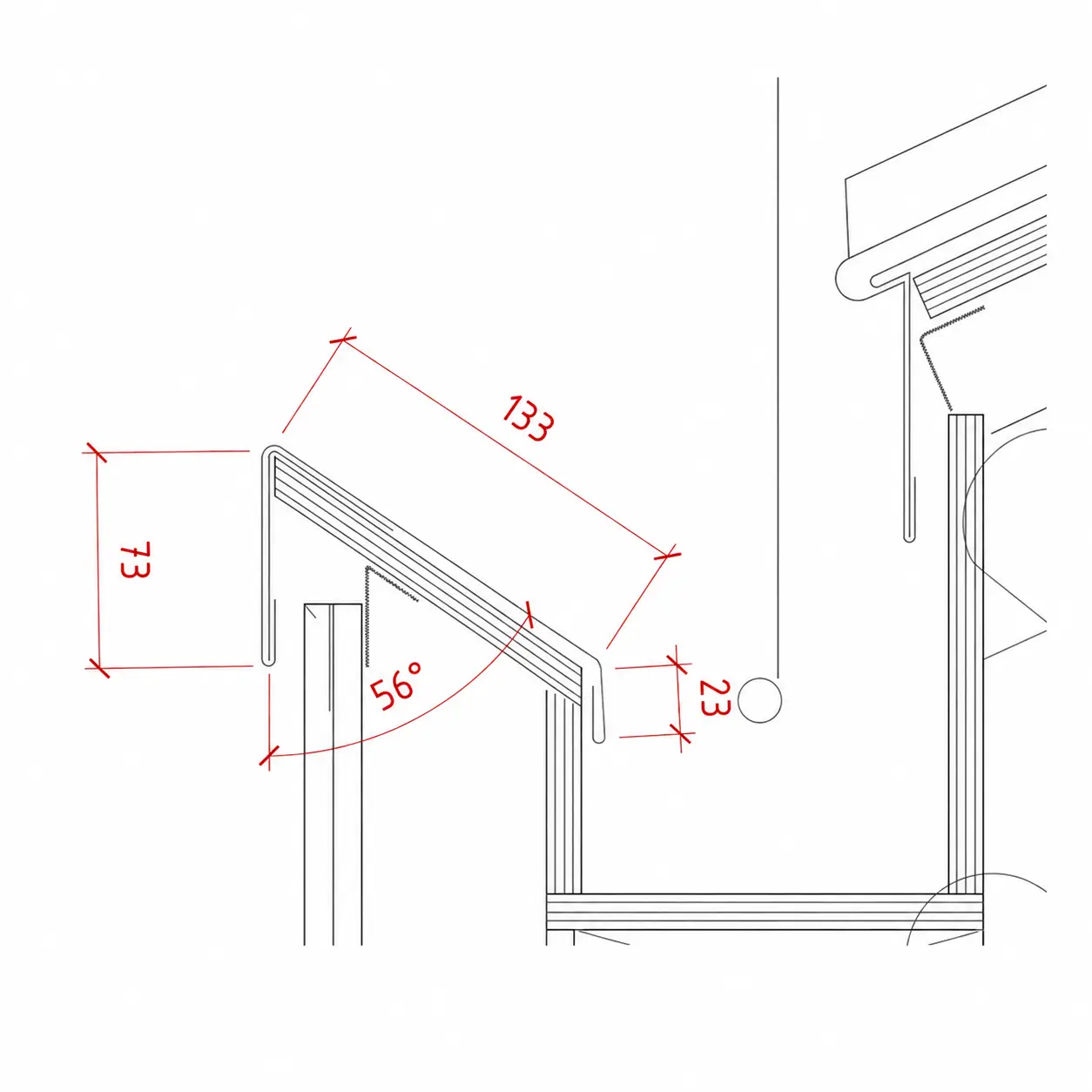

OPTION 2 - AUTOCAD

AutoCAD Image / Drawing

Export or screenshot your AutoCAD (or similar CAD) file as a clear image or PDF showing the cross-section profile. Ensure it includes precise dimensions for each leg (in mm), all bend angles, the preferred coating/colour side, and hem details where applicable. Send the file or image to us so we can review the technical details and confirm the manufacturing specifications quickly.

OPTION 2

AutoCAD Image / Drawing

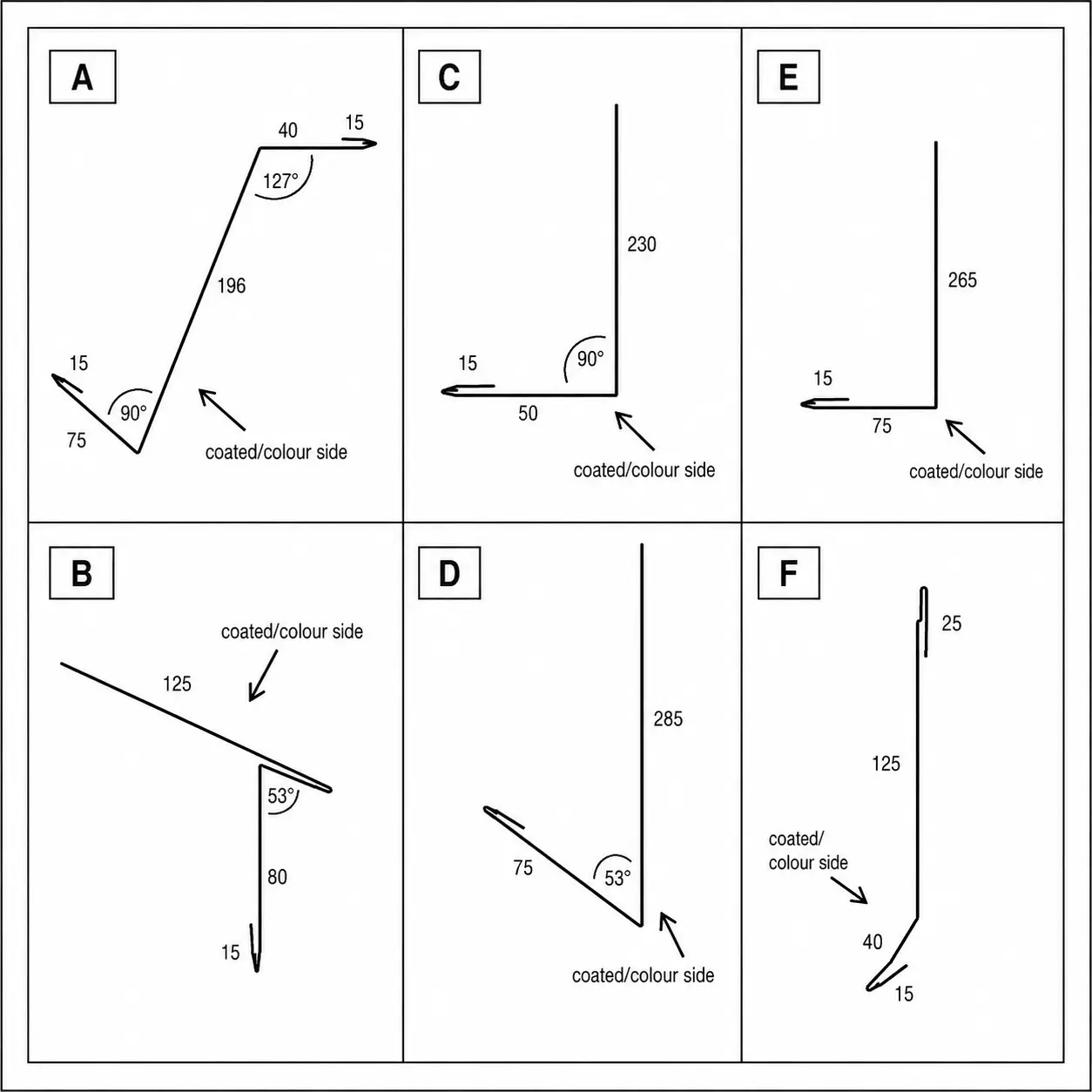

OPTION 3 - COMPUTER DRAWING

OPTION 3

Simple Computer Drawing

Create a basic digital sketch using any common program (such as Paint, Word, PowerPoint, or a free drawing app). Mark the lengths of each section in millimetres, the angles of the bends, the side that should receive the colour/coating, and where you would like hems. Export or screenshot the drawing and email it to us—this clear, straightforward format allows us to interpret your requirements accurately and move forward without delay.

.
