High strength structural steel columns designed for load-bearing applications in residential, commercial and industrial construction projects across the UK.
Universal Columns supplied across the UK

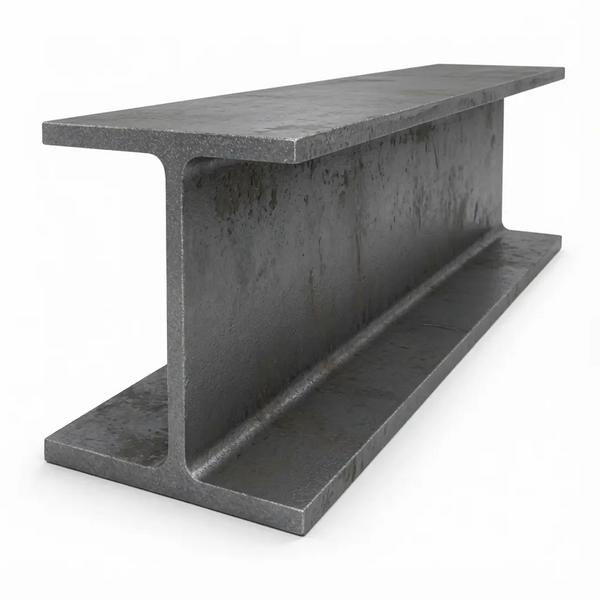

Universal Columns (UC) are structural steel sections specifically designed for carrying vertical loads. Their near-equal width and depth provide excellent load-bearing capacity, making them ideal for columns, steel frames, industrial buildings and multi-storey developments.
At Liontek, we supply Universal Columns in a wide range of sizes and specifications, with optional cutting, drilling and fabrication services available to suit your project requirements.
Whether you require a single column for a residential project or bulk quantities for commercial construction, our team can provide fast quotations, technical guidance and reliable nationwide delivery.
Examples of UC products in our range
It’s simple – buy online, use the calculator or get in touch with our advisers.
Common applications for Universal Columns
Structural steel frames
Used as primary vertical supports in steel-framed buildings.
Commercial buildings
Suitable for offices, warehouses and industrial facilities.
Residential construction
Frequently used in extensions, renovations and new builds.
Agricultural structures
Reliable support for barns, storage facilities and farm buildings.

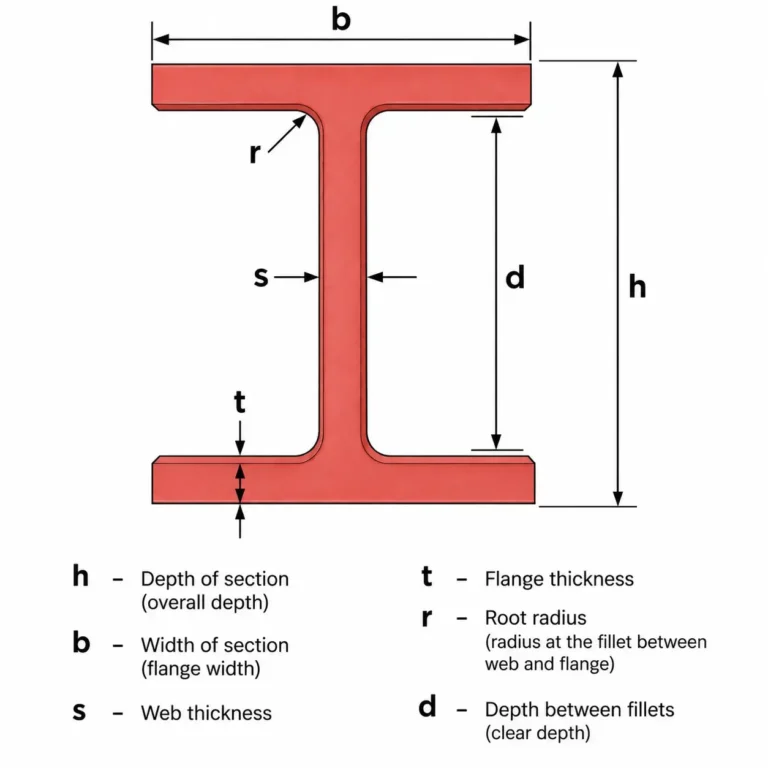

Universal Column Dimensions (Size & Weight Chart)
| No. | Type | Weight [kg/m] | Height [mm] | Width [mm] | Web thickness [mm] | Flange thickness [mm] |
|---|---|---|---|---|---|---|
| 01 | 152 UC 23 | 23 | 152.6 | 152.2 | 5.8 | 6.8 |
| 02 | 152 UC 30 | 30 | 157.6 | 152.9 | 6.5 | 9.4 |
| 03 | 152 UC 37 | 37 | 161.8 | 154.4 | 8.0 | 11.5 |
| 04 | 203 UC 46 | 46 | 203.2 | 203.6 | 7.2 | 11.0 |
| 05 | 203 UC 52 | 52 | 206.2 | 204.3 | 7.9 | 12.5 |
| 06 | 203 UC 60 | 60 | 209.6 | 205.8 | 9.4 | 14.2 |
| 07 | 203 UC 71 | 71 | 215.8 | 206.4 | 10.0 | 17.3 |
| 08 | 203 UC 86 | 86 | 222.2 | 209.1 | 12.7 | 20.5 |
| 09 | 254 UC 73 | 73 | 254.1 | 254.6 | 8.6 | 14.2 |
| 10 | 254 UC 89 | 89 | 260.3 | 256.3 | 10.3 | 17.3 |
| 11 | 254 UC 107 | 107 | 266.7 | 258.8 | 12.8 | 20.5 |
| 12 | 254 UC 132 | 132 | 276.3 | 261.3 | 15.3 | 25.3 |
| 13 | 254 UC 167 | 167 | 289.1 | 265.2 | 19.2 | 31.7 |
| 14 | 305 UC 97 | 97 | 307.9 | 305.3 | 9.9 | 15.4 |
| 15 | 305 UC 118 | 118 | 314.5 | 307.4 | 12.0 | 18.7 |
| 16 | 305 UC 137 | 137 | 320.5 | 309.2 | 13.9 | 21.7 |
| 17 | 305 UC 158 | 158 | 327.1 | 311.2 | 15.8 | 25.0 |
| 18 | 305 UC 198 | 198 | 339.9 | 314.5 | 19.1 | 31.4 |
| 19 | 305 UC 240 | 240 | 352.5 | 318.4 | 23.0 | 37.7 |
| 20 | 305 UC 283 | 283 | 365.3 | 322.2 | 26.8 | 44.1 |
| 21 | 356 x 368 UC 129 | 129 | 355.6 | 368.6 | 10.4 | 17.5 |
| 22 | 356 x 368 UC 153 | 153 | 362.0 | 370.5 | 12.3 | 20.7 |
| 23 | 356 x 368 UC 177 | 177 | 368.2 | 372.6 | 14.4 | 23.8 |
| 24 | 356 x 368 UC 202 | 202 | 374.6 | 374.7 | 16.5 | 27.0 |
| 25 | 356 x 406 UC 235 | 235 | 381.0 | 394.8 | 18.4 | 30.2 |
| 26 | 356 x 406 UC 287 | 287 | 393.6 | 399.0 | 22.6 | 36.5 |
| 27 | 356 x 406 UC 340 | 340 | 406.4 | 403.0 | 26.6 | 42.9 |
| 28 | 356 x 406 UC 393 | 393 | 419.0 | 407.0 | 30.6 | 49.2 |
| 29 | 356 x 406 UC 467 | 467 | 436.6 | 412.2 | 35.8 | 58.0 |
| 30 | 356 x 406 UC 551 | 551 | 455.6 | 418.5 | 42.1 | 67.5 |
| 31 | 356 x 406 UC 634 | 634 | 474.6 | 424.0 | 47.6 | 77.0 |
Fabrication services available
To simplify installation and reduce site labour, Liontek can provide:
How we work
Request a quotation
Send your dimensions, drawings or project requirements.
Review specifications
Our team prepares a tailored quotation and confirms technical details.
Fabrication and preparation
Materials are processed and prepared to specification.
Nationwide delivery
Your order is delivered directly to site anywhere in the UK.
FAQ
Universal Columns are primarily used as vertical load-bearing members in structural steel construction. They provide excellent strength and stability for steel frames, commercial buildings, warehouses and residential developments.
Universal Columns are designed mainly for vertical load applications and feature a more balanced width-to-depth ratio. Universal Beams are typically used for horizontal load-bearing applications such as floor and roof structures.
Yes. Liontek can supply Universal Columns cut to your required length, helping reduce on-site preparation and installation time.
Yes. We offer cutting, drilling, connection plates, base plates and bespoke fabrication services depending on project requirements.
Yes. We provide reliable nationwide delivery for both individual steel sections and bulk project orders.
