Self-drilling TORX screw for fixing steel sheets in wooden substrate 4.8 mm x 35 mm Box of 250

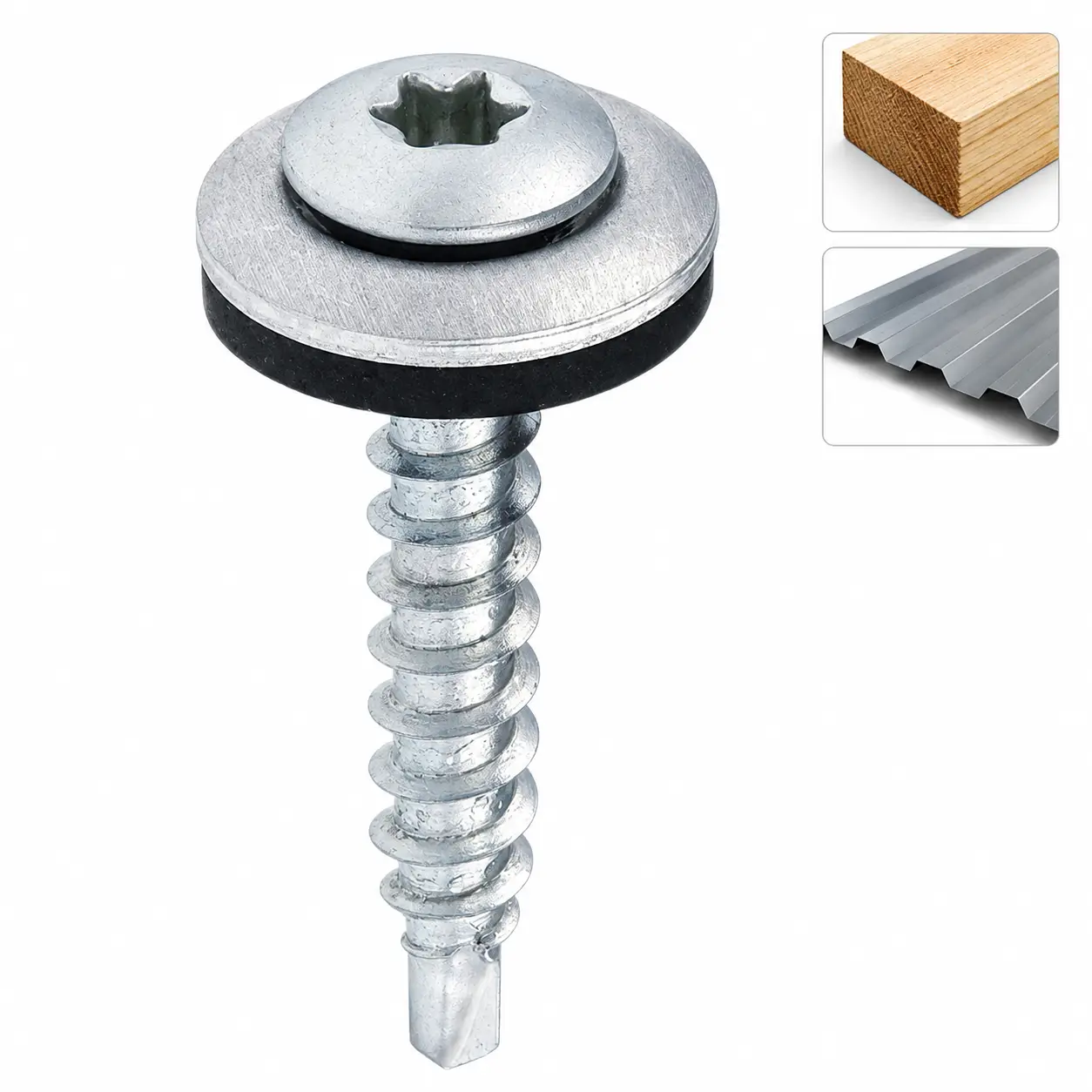

WDD Self-Drilling Roofing Screw – TORX-20, Steel Sheet to Timber

The WDD is a 4,8 x 35 mm self-drilling screw for fastening profiled steel sheet, metal roofing tiles and flat sheet onto solid timber. Its self-drilling tip cuts through plate up to 2 mm without a pilot hole and threads directly into the wood beneath, keeping fixing times short across large roof and wall areas.

Unlike hex-head roofing screws, the WDD uses a low-profile fillister head with a TORX-20 drive. The head conforms to the surface of the fixed sheet for a neat, discreet finish, while the T20 socket resists cam-out and drives cleanly with a cordless tool. A bonded EPDM washer seals the perforation and protects the joint against corrosion, and the electro-galvanised base coating carries a zinc layer of at least 12 µm. The screw is covered by European Technical Assessment ETA-16/0443.

Available also in other colour options

Heads can be lacquered to the RAL palette with a UV-resistant coating that matches the fixed sheet and adds a further layer of corrosion protection. Available shades:

• RAL 3005 wine red, 3009 oxide red, 3011 brown red
• RAL 5005 signal blue, 5010 gentian blue
• RAL 6005 moss green, 6020 chrome green
• RAL 7016 anthracite grey, 7024 graphite grey
• RAL 8003 clay brown, 8004 copper brown, 8017 chocolate brown, 8019 grey brown
• RAL 9002 grey white, 9003 signal white, 9005 jet black, 9006 white aluminium, 9007 grey aluminium, 9010 pure white

An unpainted, plain zinc-plated version is also available. The RAL number closes the product code – for example, jet black is WDD-48035-9005.

Key features

• Diameter 4,8 mm, length 35 mm; for solid wood substrates
• Self-drilling tip – drills sheet up to 2 mm, no pre-drilling required
• Fillister head with TORX-20 drive; head seats flush to the sheet profile for a clean finish
• EPDM washer seals the fixing and protects it from corrosion
• Electro-galvanised coating, zinc thickness min. 12 µm
• Optional UV-resistant RAL colour finish matched to the roofing material
• Covered by ETA-16/0443 with Declaration of Performance
• Applications: profiled sheet, metal roof tiles and flat sheet onto timber

Size chart – contact us for other sizes availability

Further RAL shades from the list above are available in the same 4,8 x 35 mm size and 250 pcs. packs.
