HEX Self-drilling screw for making lap joints in steel sheets 4.8 mm RAL

WSBP Self-Drilling Stitching Screw – Lap Joints in Steel Sheet, 4,8 mm

The WSBP is a short self-drilling screw made for stitching steel sheets together where they overlap. It is the standard fixing for closing side laps in profiled sheeting, joining metal roof tile panels along their overlaps and securing flashings, with a drilling capacity of up to 2,5 mm and no need to pre-drill. Available in 16, 19 and 25 mm lengths, it suits steel substrates up to 3 mm.

The hex head raises pull-through resistance at the joint and also allows steel-to-timber use where required, while the bonded EPDM washer seals the perforation and shields the connection from corrosion. Underneath, an electro-galvanised finish carries a zinc layer of at least 12 µm. The screw is covered by European Technical Assessment ETA-16/0443 and holds a hygienic certificate.

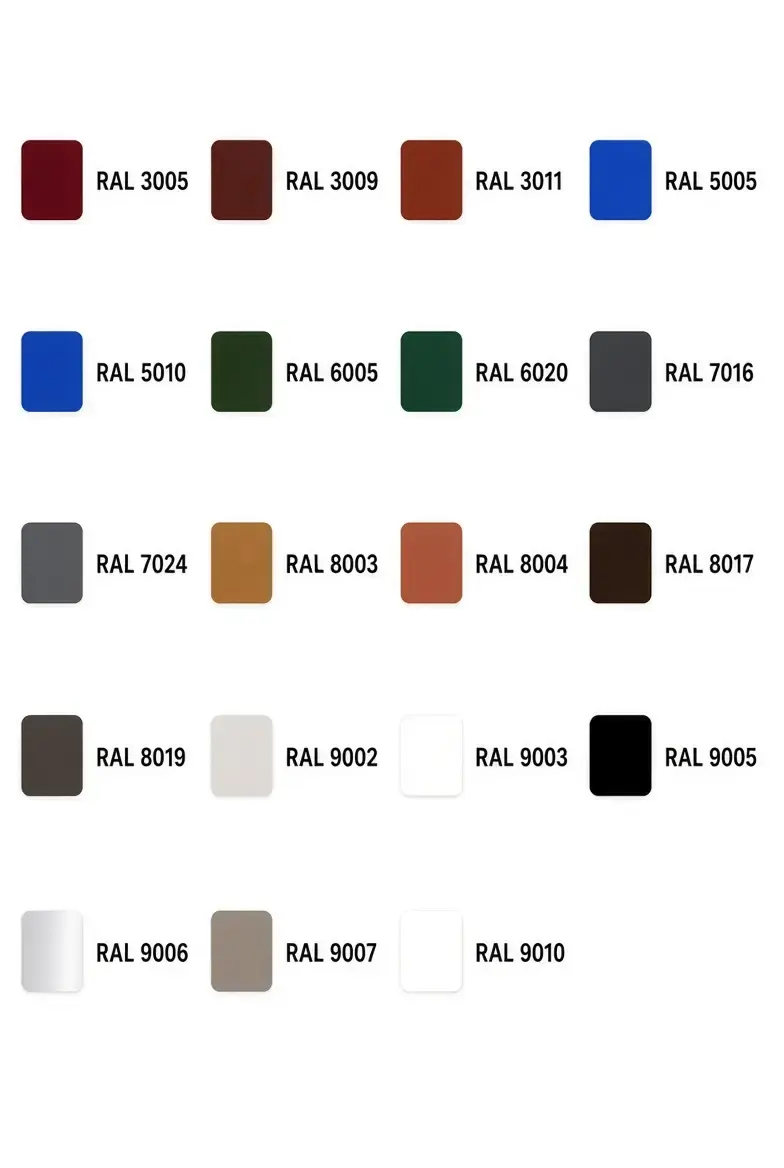

Colour options

Heads can be finished to the RAL palette with a UV-resistant coating matched to the sheet, adding a further barrier against corrosion. Available shades:

• RAL 3005 wine red, 3009 oxide red, 3011 brown red
• RAL 5005 signal blue, 5010 gentian blue
• RAL 6005 moss green, 6020 chrome green
• RAL 7016 anthracite grey, 7024 graphite grey
• RAL 8003 clay brown, 8004 copper brown, 8017 chocolate brown, 8019 grey brown
• RAL 9002 grey white, 9003 signal white, 9005 jet black, 9006 white aluminium, 9007 grey aluminium, 9010 pure white

Plain zinc-plated versions are stocked alongside the painted range. The RAL number closes the product code – for example, oxide red in 19 mm is WSBP-48019-3009.

Key features

• Diameter 4,8 mm; lengths 16, 19 and 25 mm
• Self-drilling tip – drilling capacity ≤ 2,5 mm, no pre-drilling required
• Hex head for high pull-through resistance; also suits steel-to-timber fixing
• EPDM washer seals the joint and protects it from corrosion
• Electro-galvanised coating, zinc thickness min. 12 µm
• Optional UV-resistant RAL colour finish matched to the sheet
• Covered by ETA-16/0443, with Declaration of Performance and hygienic certificate
• Applications: sheet lap joints, stitching metal roof tiles, flashings

Size chart

Further RAL shades from the list above are available in 4,8 x 19 mm, 250 pcs. packs. Declaration of Performance, hygienic certificate and product data sheet available on request.
