90° External Corner Barge Flashings 2m

LIONTEK 2m 90 Degree External Corner Barge with PVC Plastisol Coating

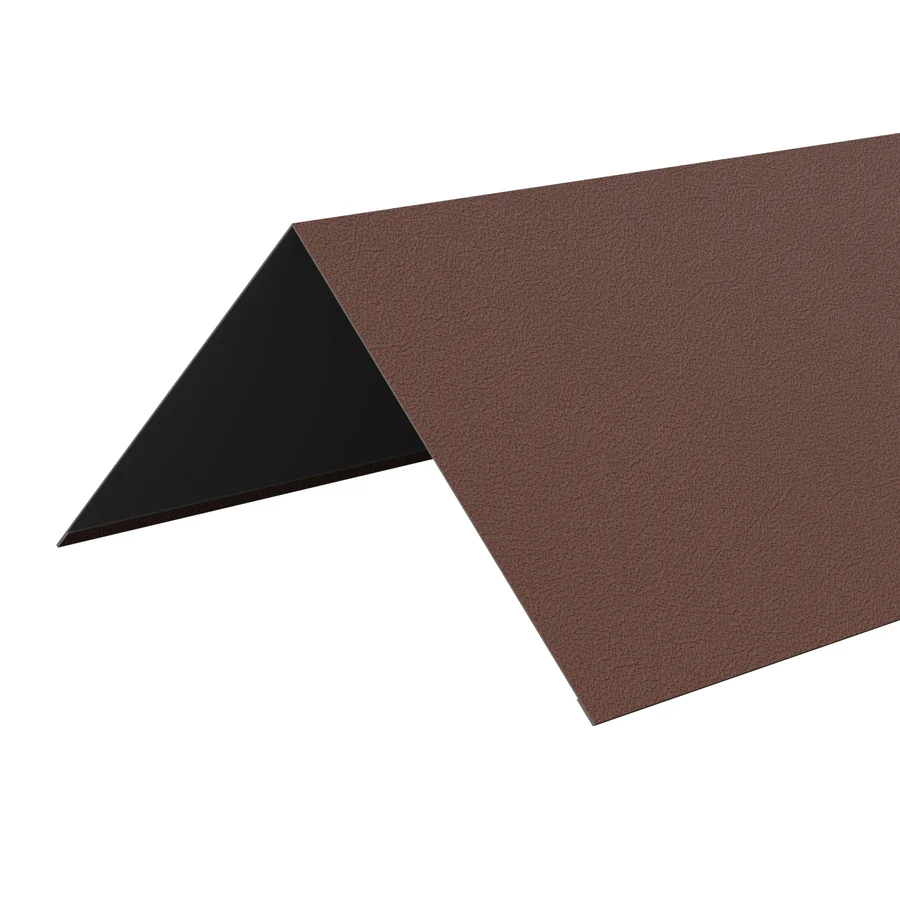

Our Briarwood 90 Degree External Corner Barge Flashings, manufactured at our Highbridge Headquarters, are designed to provide a clean trim and secure seal for roof edges, adding both weatherproofing and a polished finish to your building. Each barge flashing is pre-folded to a 90-degree internal angle and can flex by 10–15 degrees in either direction, allowing it to accommodate various roof designs with ease.

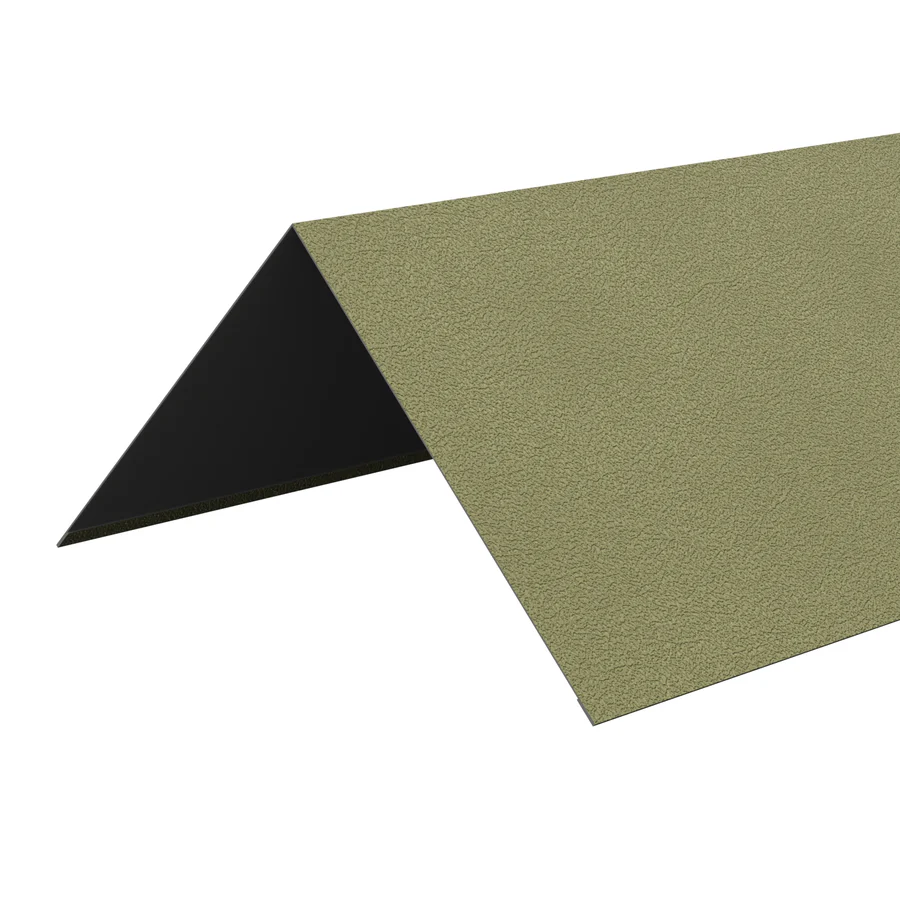

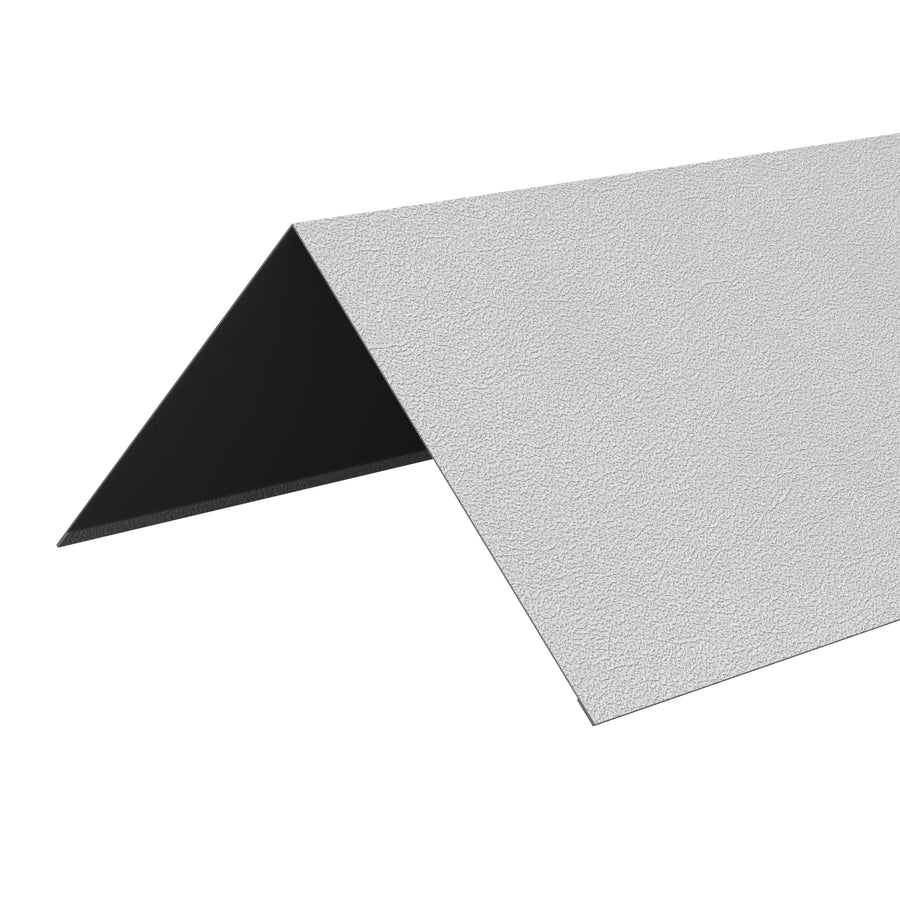

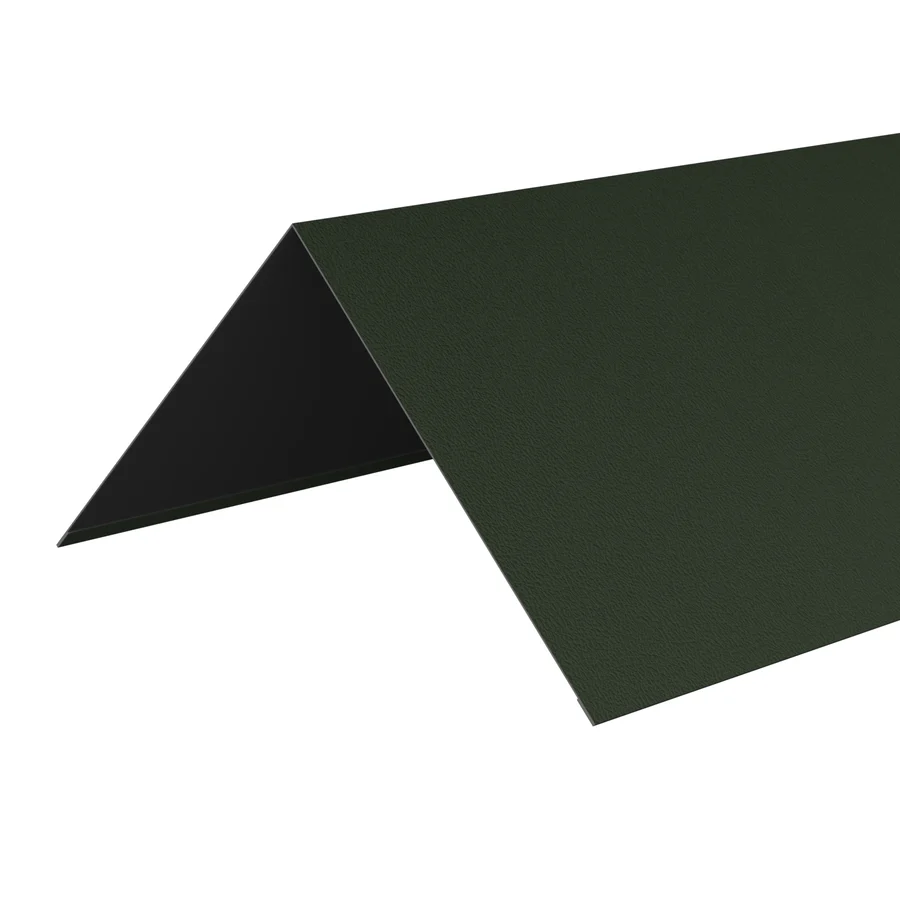

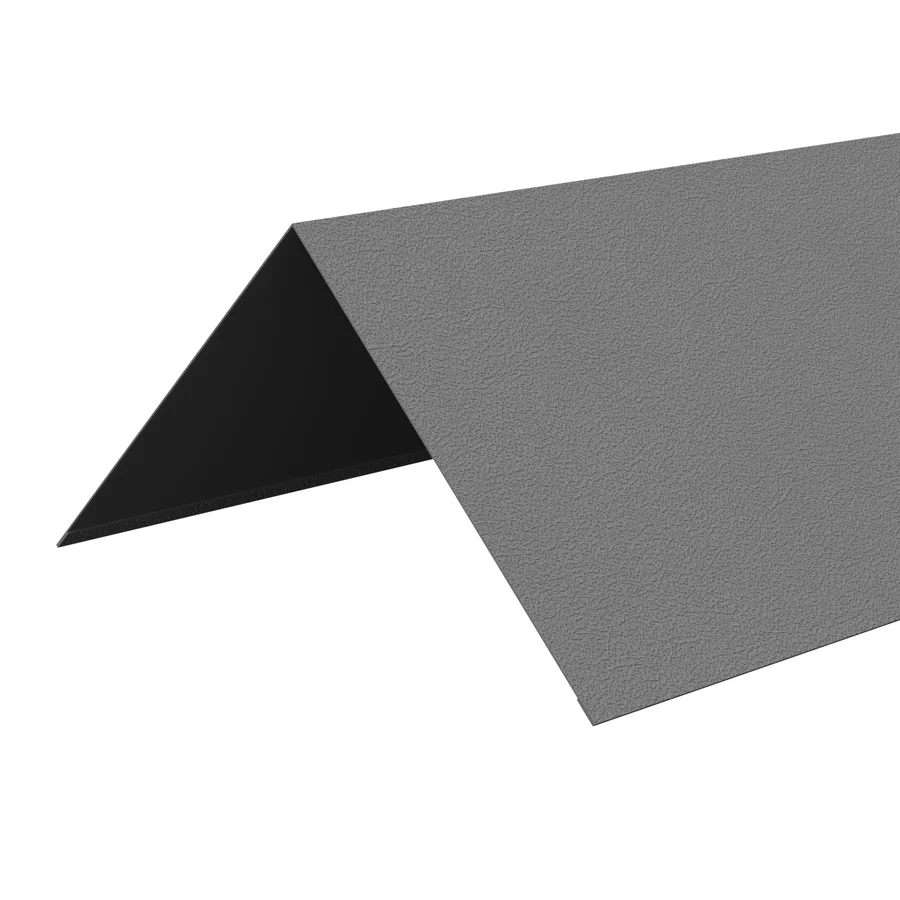

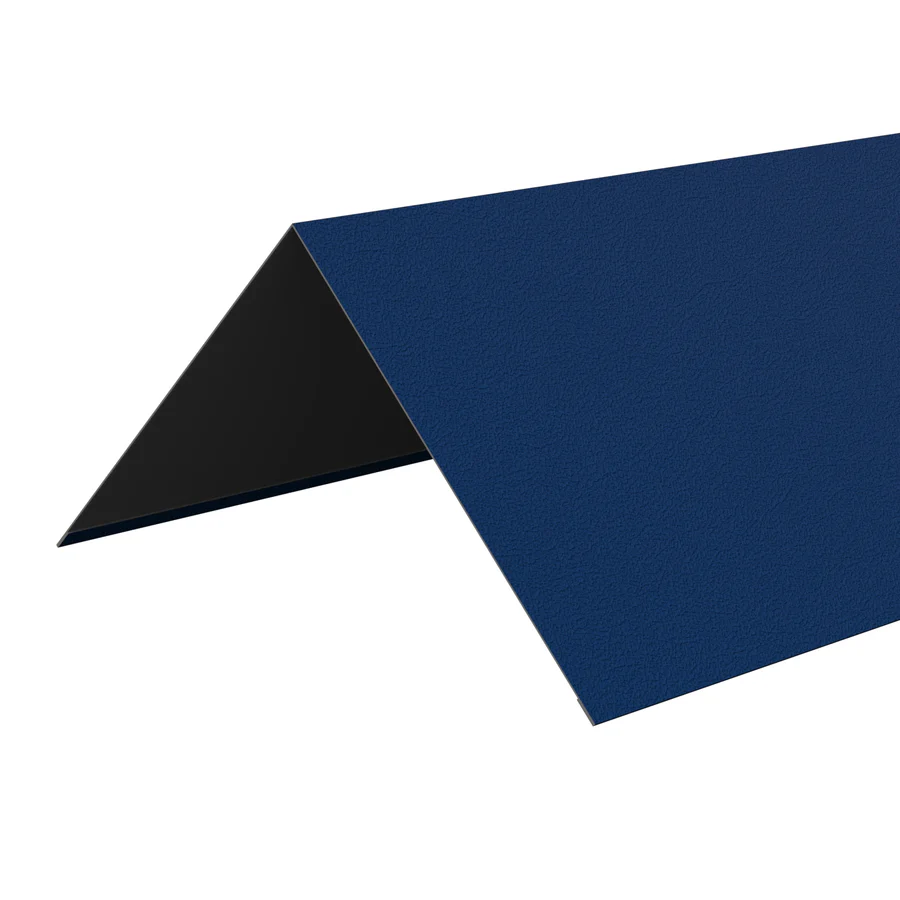

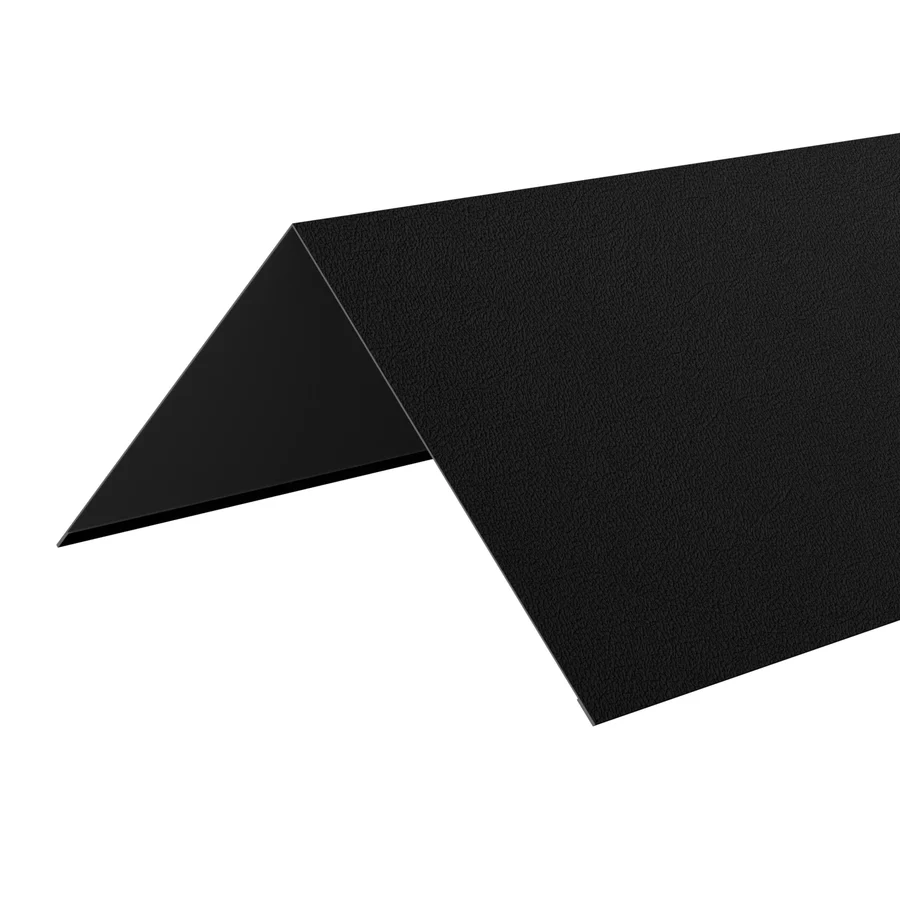

The durable PVC Plastisol coating provides superior resistance to weathering, ensuring a long-lasting finish. Available in a range of colours, these barge flashings are designed to either match or contrast with our roofing sheets, enhancing the overall aesthetic of your building.

Each barge flashing includes a 10mm safety welt for added strength and safer handling during installation.

Our standard 3-metre barge flashings can be customised to the size you specify in the product variant options. If you require non-standard dimensions, simply provide us with your measurements, and we’ll strive to accommodate your needs.

To install, secure the barge flashings to the underlying roofing sheet using st22 stitching screws, and ensure a minimum overlap of 200mm between adjoining flashings for a secure fit.

These 90 Degree External Corner Barge Flashings are compatible with our 13/3 Corrugated, 32/1000 Box Profile, and 34/1000 Box Profile Roofing Sheets.

Our PVC Plastisol-coated Barge Flashings come with a protective film. For best results, remove this film after installation or if storing in direct sunlight or damp conditions to prevent adhesion issues.

Specifications:

• Length: 2.0 metres
• Safety Welt: 10mm
• Angle: 90º

Product Dimensions

Thickness: 0.5mm

Material: Metal
