Universal Beams

  • Made to measure UC beams
  • Nationwide delivery
  • Fast and competitive pricing
  • Easy and straightforward to order
CALCULATE YOURSELF CONTACT THE OFFICE

Order UB Beams from LIONTEK



At LIONTEK, we excel in crafting precision-engineered universal beams to the highest construction standards. With advanced manufacturing and rigorous quality checks, our beams are built to last. Ordering is easy and hassle-free, featuring quick delivery, competitive prices, and a committed support team for end-to-end service. Contact us today to discuss your needs and get a custom quote.

Universal Beam Dimensions (Size & Weight Chart)

Type Size Weight [kg/m] Height [mm] Width [mm] Web thickess [mm] Flange thickess [mm]
01 127 x 76 UB 13 13 127.0 76.0 4.0 7.6
02 152 x 89 UB 16 16 152.4 88.7 4.5 7.7
03 178 x 102 UB 19 19 177.8 101.2 4.8 7.9
04 203 x 102 UB 23 23 203.2 101.8 5.4 9.3
05 203 x 133 UB 25 25 203.2 133.2 5.7 7.8
06 203 x 133 UB 30 30 206.8 133.9 6.4 9.6
07 254 x 102 UB 22 22 254.0 101.6 5.7 6.8
08 254 x 102 UB 25 25 257.2 101.9 6.0 8.4
09 254 x 102 UB 28 28 260.4 102.2 6.3 10.0
10 254 x 146 UB 31 31 251.4 146.1 6.0 8.6
11 254 x 146 UB 37 37 256.0 146.4 6.3 10.9
12 254 x 146 UB 43 43 259.6 147.3 7.2 12.7
13 305 x 102 UB 25 25 305.1 101.6 5.8 7.0
14 305 x 102 UB 28 28 308.7 101.8 6.0 8.8
15 305 x 102 UB 33 33 312.7 102.4 6.6 10.8
16 305 x 127 UB 37 37 304.4 123.4 7.1 10.7
17 305 x 127 UB 42 42 307.2 124.3 8.0 12.1
18 305 x 127 UB 48 48 311.0 125.3 9.0 14.0
19 305 x 165 UB 40 40 303.4 165.0 6.0 10.2
20 305 x 165 UB 46 46 306.6 165.7 6.7 11.8
21 305 x 165 UB 54 54 310.4 166.9 7.9 13.7
22 356 x 127 UB 33 33 349.0 125.4 6.0 8.5
23 356 x 127 UB 39 39 353.4 126.0 6.6 10.7
24 356 x 171 UB 45 45 351.4 171.1 7.0 9.7
25 356 x 171 UB 51 51 355.0 171.5 7.4 11.5
26 356 x 171 UB 57 57 358.0 172.2 8.1 13.0
27 356 x 171 UB 67 67 363.4 173.2 9.1 15.7
28 406 x 140 UB 39 39 398.0 141.8 6.4 8.6
29 406 x 140 UB 46 46 403.2 142.2 6.8 11.2
30 406 x 178 UB 54 54 402.6 177.7 7.7 10.9
31 406 x 178 UB 60 60 406.4 177.9 7.9 12.8
32 406 x 178 UB 67 67 409.4 178.8 8.8 14.3
33 406 x 178 UB 74 74 412.8 179.5 9.5 16.0
34 457 x 152 UB 52 52 449.8 152.4 7.6 10.9
35 457 x 152 UB 60 60 454.6 152.9 8.1 13.3
36 457 x 152 UB 67 67 458.0 153.8 9.0 15.0
37 457 x 152 UB 74 74 462.0 154.4 9.6 17.0
38 457 x 152 UB 82 82 465.8 155.3 10.5 18.9
39 457 x 191 UB 67 67 453.4 189.9 8.5 12.7
40 457 x 191 UB 74 74 457.0 190.4 9.0 14.5
41 457 x 191 UB 82 82 460.0 191.3 9.9 16.0
42 457 x 191 UB 89 89 463.4 191.9 10.5 1707
43 457 x 191 UB 98 98 467.2 192.8 11.4 19.6
44 533 x 210 UB 101 101 536.7 210.0 10.8 17.4
45 533 x 210 UB 109 109 539.5 210.8 11.6 18.8
46 533 x 210 UB 122 122 544.5 211.9 12.7 21.3
47 533 x 210 UB 82 82 528.3 208.8 9.6 13.2
48 533 x 210 UB 92 92 533.1 209.3 10.1 15.6
49 610 x 229 UB 101 101 602.6 227.6 10.5 14.8
50 610 x 229 UB 113 113 607.6 228.2 11.1 17.3
51 610 x 229 UB 125 125 612.2 229.0 11.9 19.6
52 610 x 229 UB 140 140 617.2 230.2 13.1 22.1
53 610 x 305 UB 149 149 612.4 304.8 11.8 19.7
54 610 x 305 UB 179 179 620.2 307.1 14.1 23.6
55 610 x 305 UB 238 238 635.8 311.4 18.4 31.4
56 686 x 254 UB 125 125 677.9 253.0 11.7 16.2
57 686 x 254 UB 140 140 683.5 253.7 12.4 19.0
58 686 x 254 UB 152 152 687.5 254.5 13.2 21.0
59 686 x 254 UB 170 170 692.9 255.8 14.5 23.7
60 762 x 267 UB 134 134 750.0 264.4 12.0 25.5
61 762 x 267 UB 147 147 754.0 265.2 12.8 17.5
62 762 x 267 UB 173 173 762.2 266.7 14.3 21.6
63 762 x 267 UB 197 197 769.8 268.0 15.6 25.4
64 838 x 292 UB 176 176 834.9 291.7 14.0 18.8
65 838 x 292 UB 194 194 840.7 292.4 14.7 21.7
66 838 x 292 UB 226 226 850.9 293.8 16.1 26.8
67 914 x 305 UB 201 201 903.0 303.3 15.1 20.2
68 914 x 305 UB 224 224 910.1 304.1 15.9 23.9
69 914 x 305 UB 253 253 918.4 305.5 17.3 27.9
70 914 x 305 UB 289 289 926.6 307.7 19.5 32.0
71 914 x 419 UB 343 343 911.8 418.5 19.4 32.0
72 914 x 419 UB 388 388 921.0 420.5 21.4 36.6

PRODUCT CHARACTERISTICS

• High Strength • Durable • Corrosion Resistant • Precise Dimensions • Cost Effective

Our Hassle Free and Simple 4 Step Process

Free universal columns quotation

Get started quickly with our free, no-obligation quotation service, offering transparent pricing and expert advice tailored to your project needs.

Planning and design process

Collaborate with our expert team to optimize your plans, ensuring universal columns are designed for accuracy and peak performance.

Bespoke UC steel production

Your UC steel beams are tailor-made to top standards, ensuring quality and precision for your construction project.

Fast delivery Nationwide

Enjoy swift delivery directly to your site, keeping your project on track with minimal effort. We call it  On-time-Every-time

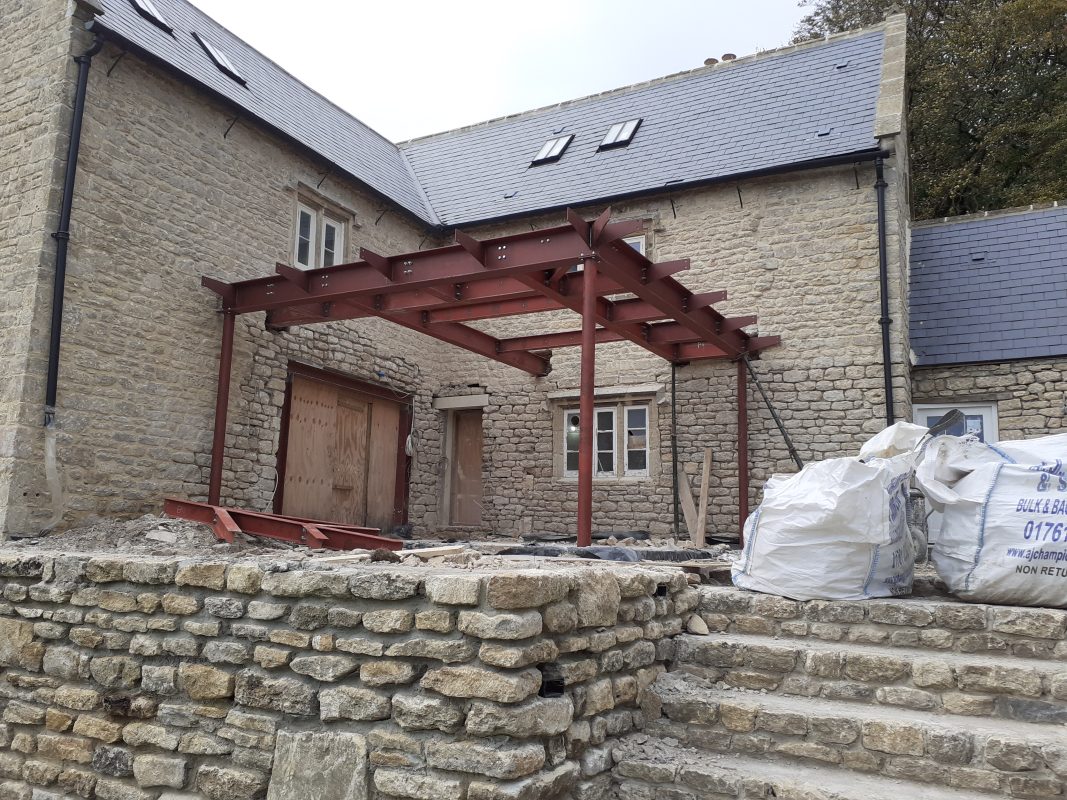

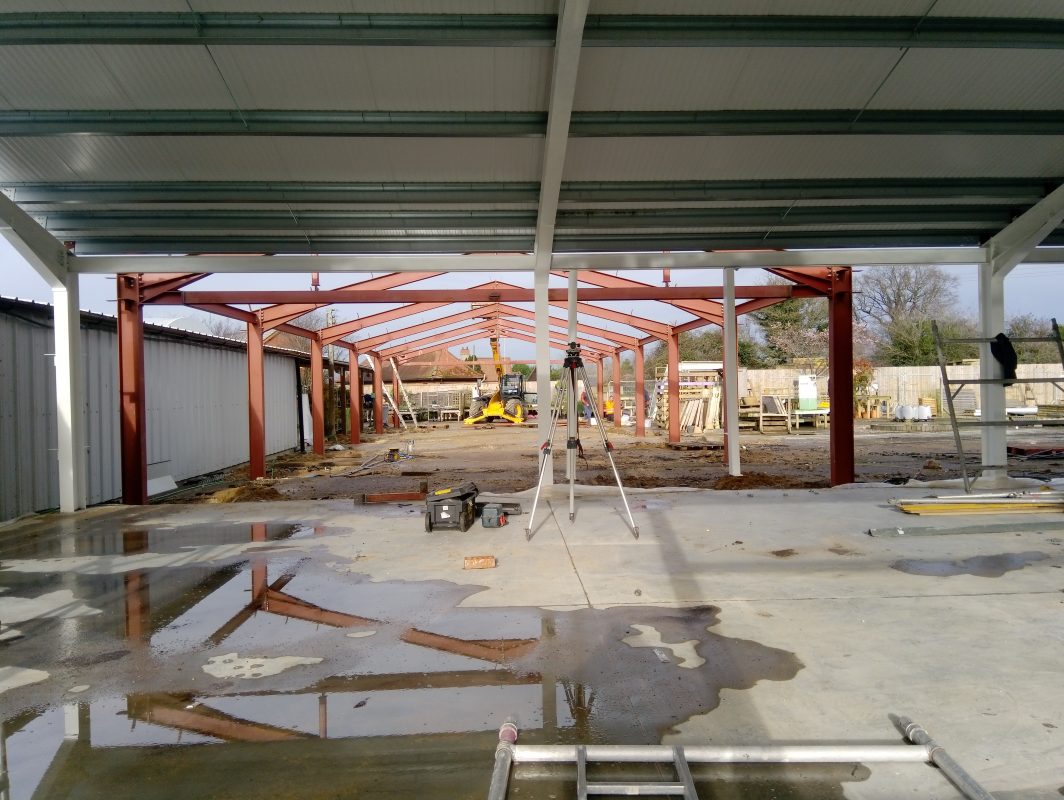

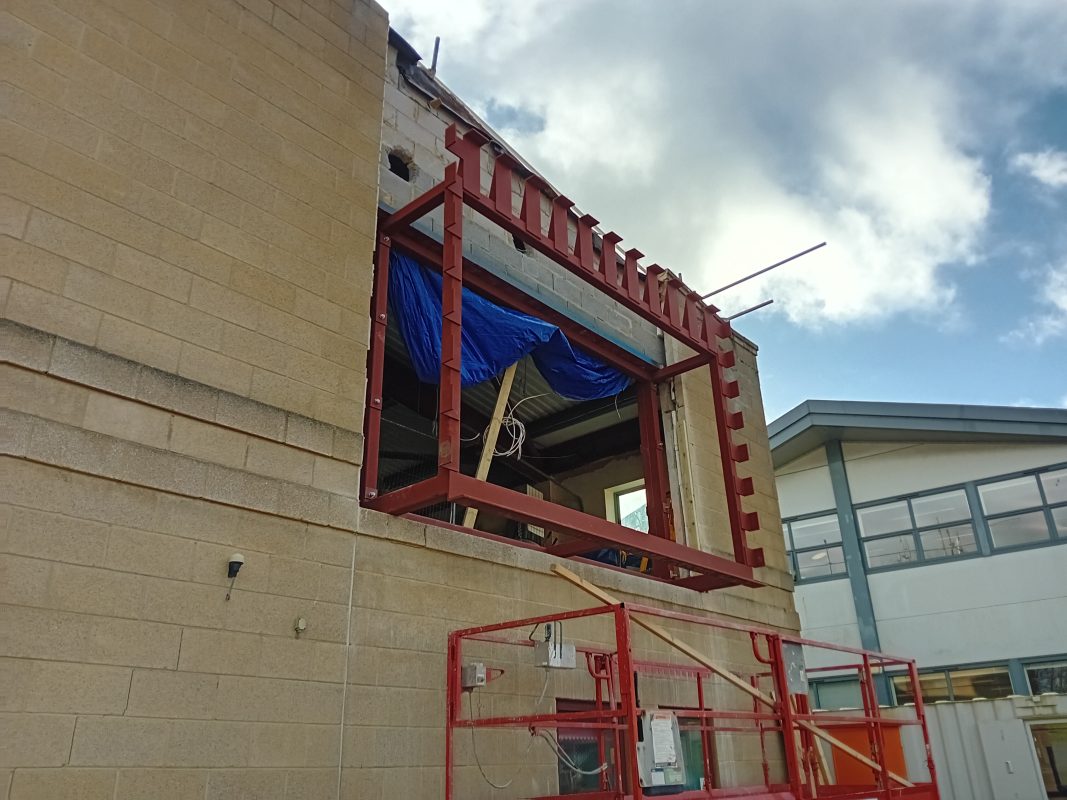

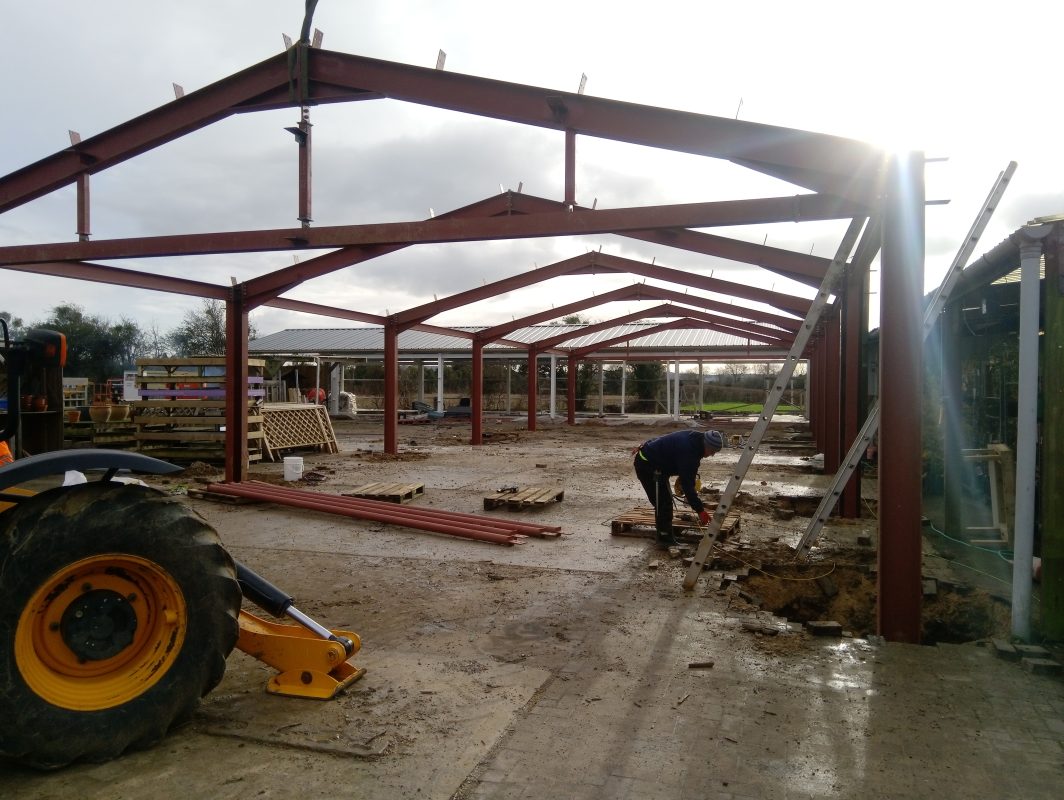

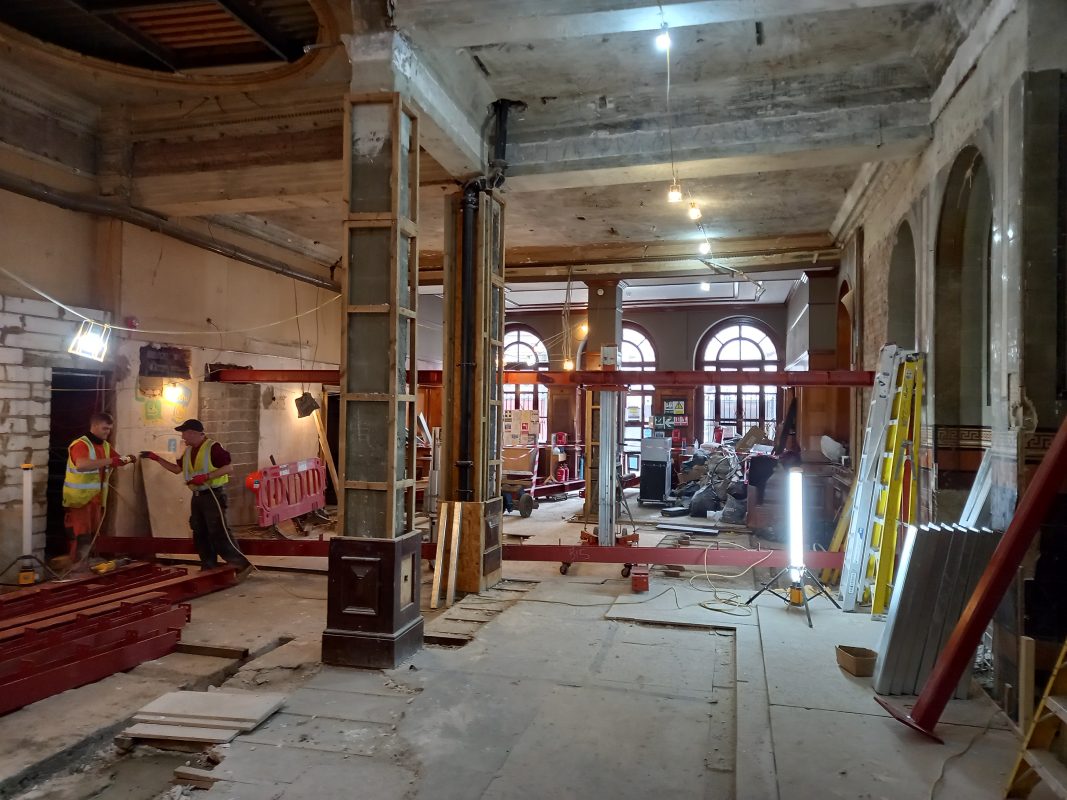

Our Latest Projects

Check out our recent steel beam projects, highlighting the outstanding quality, precision, and adaptability we deliver in every build. From intricate designs to straightforward setups, trust the skilled LIONTEK team.

FAQs

What is a universal beam ?

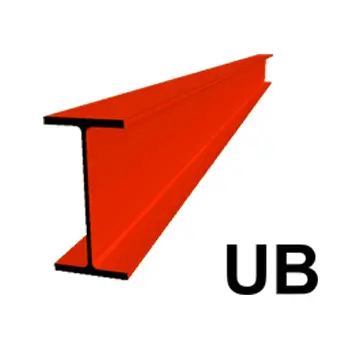

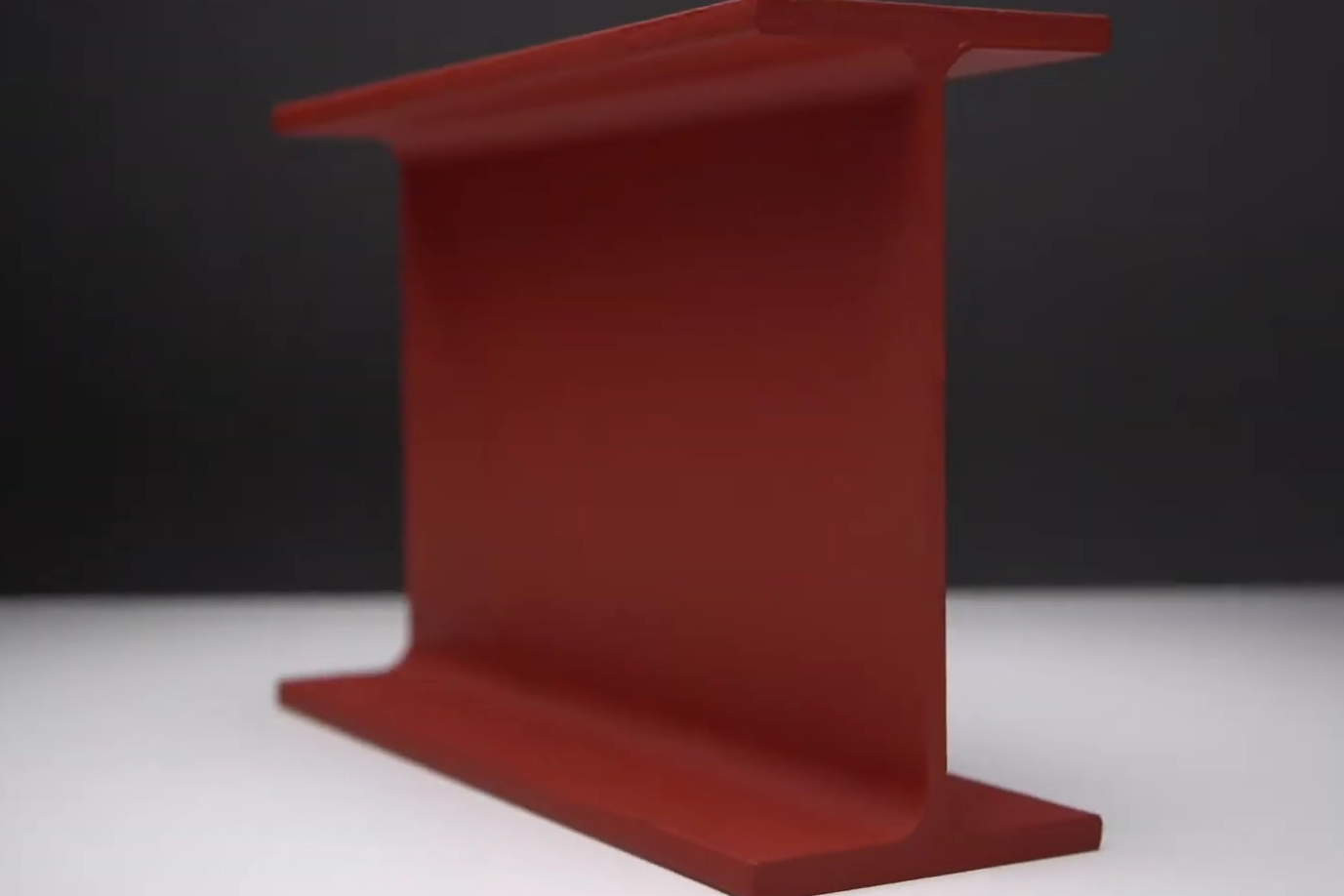

A universal beam, or I-beam, is a sturdy steel component for construction, featuring an I-shaped cross-section with a vertical web and horizontal flanges for superior load resistance. Widely used in frameworks, floor supports, and load-bearing walls for commercial and residential projects, its robust design ensures stability and structural integrity across various applications.

RSJ (Rolled Steel Joist) and universal beams are both structural steel components, but they have distinct differences in design and application.

The RSJ features a tapered flange design, which was more common in older construction projects and is now less frequently used. Universal beams, on the other hand, have a superior I-shaped cross-section with parallel flanges, providing greater strength and resistance to bending.

Universal beams are a popular choice in modern construction due to their enhanced load-bearing capabilities, making them ideal for frameworks, floor beams, and load-bearing walls. While RSJs may still be found in refurbishment projects or older structures, universal beams deliver higher performance and precision for both commercial and residential construction needs.

Yes, universal beams are typically manufactured using a hot rolling process. Hot rolling involves heating steel to a high temperature and shaping it through rolling mills.

This process allows the steel to be easily moulded into the precise I-beam shape, with parallel flanges and a vertical web, ensuring structural integrity and accurate dimensions.

Yes, a universal beam can serve as a column in construction, depending on structural needs, with its I-shaped design offering strong vertical load support for roofs, floors, and other elements. However, consider buckling, load capacity, and alignment, and consult a structural engineer to ensure proper specification and safe installation.



Calculating the size of a universal beam involves assessing several key factors, including the load requirements, span length, and the type of structure being supported. The beam must be sized to handle the expected weight while maintaining structural integrity and meeting safety standards.

Because these calculations require precise measurements and compliance of building regulations, it’s essential to consult a structural engineer.
