| PRODUCT PROPERTIES – THE 3-IN-1 PANEL WITH EXCELLENT INSULATION VALUES | |||||||||||
| PROPERTIES | UNIT | DP20 | DP30 | DP40 | DP60 | DP80 | DP100 | DP120 | DP140 | DP150 | DP160 |

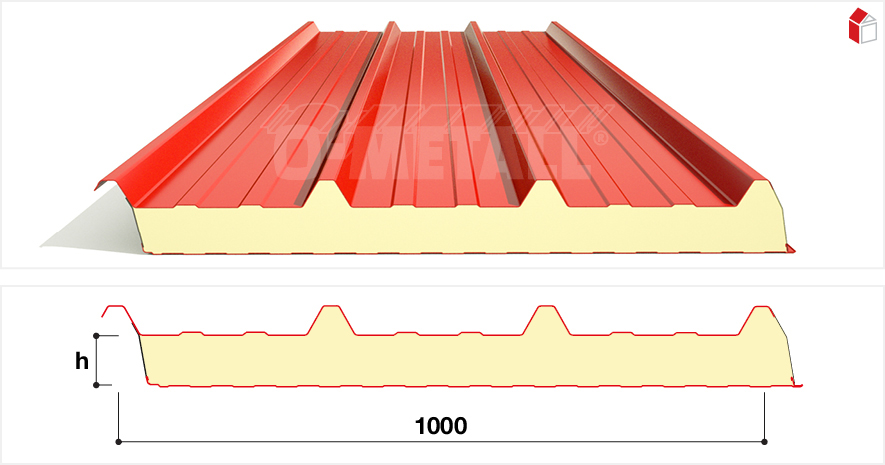

| CORE THICKNESS (h)* | mm | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 150 | 160 |
| U-VALUE | W/m².K | 0.91 | 0.68 | 0.52 | 0.36 | 0.27 | 0.22 | 0.18 | 0.16 | 0.15 | 0.14 |
| *Attention! Our nominal thickness corresponds to the thickness of the isolation. It is measured at the leanest place of the panel. | |||||||||||
MAKE A NON-BINDING REQUEST RIGHT NOW
| TECHNICAL PROPERTIES | |
| OUTER SHELL | LIONTEK® box profile , heat-treated fully galvanised steel Steel thicknesses 0,50mm – 0,63mm – on request 0,75mm Polyester colour coating (POL) 25μm standard, other coating systems up to 200μm available |
| INSULATION CORE | CFC- and HCFC-free, approx. 96% closed-cell, density approx. 40kg/m³ Polyurethane hard foam (PUR) or polyisocyanurate hard foam (PIR) TCR 023 FPC B-s2-d0 / B-s1-d0, flame retardant according to EN 13501.1 |
| INNER SHELL | Optical profile slightly lined (LL) – other on request, heat-treated fully galvanised steel Steel thicknesses 0,40mm – 0,45mm – 0,50mm – 0,63mm – on request 0,75mm DU-coating similar to white standard, other colours and coating systems up to 200μm available |
| OTHER | Large range of standard colours – special colours on request CE-marking according to EN 14509 |
| EXTRAS (on request) | Foam cut-back (mounting direction freely selectable) Inner shell in stainless steel (VA) Production and transport of excess lengths A-sided packaging for octopus installation |
PRODUCT CHARACTERISTICS
Not only because of their air and waterproofness but also thanks to their high thermal insulation effectiveness LIONTEK® sandwich panels for roof are the first choice for the most economical building envelopes. The geometrical shape and the joint design are optimised for maximum stability, best possible water drainage and thermal insulation. We recommend fixing with LIONTEK® sandwich screws and caps. Of course, all our sandwich panels can also be produced in excess lengths and delivered at low cost. The profile geometry or other technical details may vary depending on the production equipment used. We will always offer you the most favourable and fastest available product type based on your requirements. The above-mentioned product specifications refer to the best available product variant and may vary in individual cases.
