PRODUCT PROPERTIES – COST-EFFECTIVE WALL HIDDEN FIXING (VB)
PROPERTIES UNIT WP25 EX VB WP30 EX VB WP40 EX VB WP50 EX VB WP60 EX VB WP80 EX VB WP100 EX VB WP120 EX VB WP150 EX VB WP180 EX VB WP200 EX VB WP220 EX VB WP240 EX VB

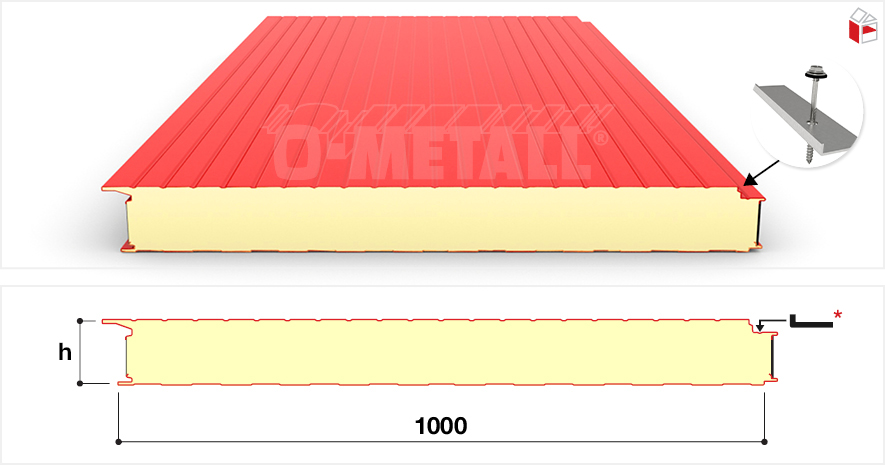

CORE THICKNESS (h) mm 25 30 40 50 60 80 100 120 150 180 200 220 240
U-VALUE W/m².K 0.84 0.71 0.55 0.44 0.37 0.28 0.22 0.19 0.15 0.12 0.11 0.10 0.09

MAKE A NON-BINDING REQUEST RIGHT NOW

TECHNICAL PROPERTIES
OUTER SHELL Optical profile slightly lined (LL), optionally micro lined (ML), ribbed (GS) or flat (GL)
Heat-treated fully galvanised steel, steel thicknesses 0.40 to 0.70mm
Polyester colour coating (POL) 25µm standard, other coating systems available up to 200μm
INSULATION CORE CFC- and HCFC-free, density approx. 40kg/m³
Polyurethan hard foam (PUR) or alternatively
Polyisocyanurat hard foam (PIR) FRC B-s2,d0, flame retardent
INNER SHELL Optical profile slightly lined (LL), optionally micro lined (ML) or flat (GL)
Heat-treated fully galvanised steel, steel thicknesses 0.40 to 0.60mm
Polyester coating (POL) similar to white standard, other colours and coating systems available up to 200μm
OTHER Large range of standard colours – special colours on request
Installation with load distribution plate (LVP)* recommended
CE-marking according to EN 14509
EXTRAS (on request) Load distribution plates (LVP)* – must be ordered separately
STANDARD COLOURS FOR MATERIAL THICKNESS 0.50mm
Attention Colour deviations are possible. For an exact representation of the colours please use a RAL card.

PRODUCT CHARACTERISTICS
The LIONTEK® export panel wall with hidden fixing has been designed especially for applications that require a sandwich panel but that seen high cost pressure make the demand difficult for material purchase. Therefore, here as well our starting point is a particularly price-aggressive purchasing strategy in regard to the primary materials. The export panel is manufactured on special, ultra-modern production lines manufacturing at high speed. Moreover, the choice is limited to 3 standard colours. We also use efficient product packaging and a maximum loading capacity when transporting the goods with help of our ultra-modern fleet of vehicles. This mix of actions enables us to offer you our export panel at such a competitive price. Please note that the panel joint may vary depending on the production plant and core thickness. We recommend the use of *load distribution plates (LVP) for the installation of LIONTEK® wall panels with concealed fixing.
