PRODUCT PROPERTIES – INNOVATIVE AND COST-EFFECTIVE
PROPERTIES UNIT TP27 ES-04 TP27 ES-05 TP27 ES-06
CORE THICKNESS (h) mm 10 10 10
TOTAL THICKNESS W/m².K 1.44 1.44 1.44
OUTER SHELL mm 0.40 0.50 0.60
*Attention! Our nominal thickness corresponds to the thickness of the isolation. It is measured at the leanest place of the panel.
MAKE A NON-BINDING REQUEST RIGHT NOW
TECHNICAL PROPERTIES
OUTER SHELL LIONTEK® box profile sheet 27.112.8
Heat-treated fully galvanised steel, steel thicknesses 0.40 to 0.60mm
Polyester colour coating (POL) 25µm standard, other coating systems available up to 200μm
PUR-LAYER HCFC-free, density approx. 60kg/m³
Polyurethane hard foam (PUR)
INNER SHELL Standard: None
Optional: Aluminum foil (ALF)
OTHER Extra-large overlap of one high and one low bead
Various range of standard colours – special colours on request
EXTRAS (on request) Foam back-cut, mounting direction freely selectable
Crimp curving with different bending radii possible
Aluminum foil (ALF) with rigid stucco texture
STANDARD COLOURS (0.50mm) Attention: Colour deviations possible. For exact colour representation please use a RAL card.
PRODUCT CHARACTERISTICS

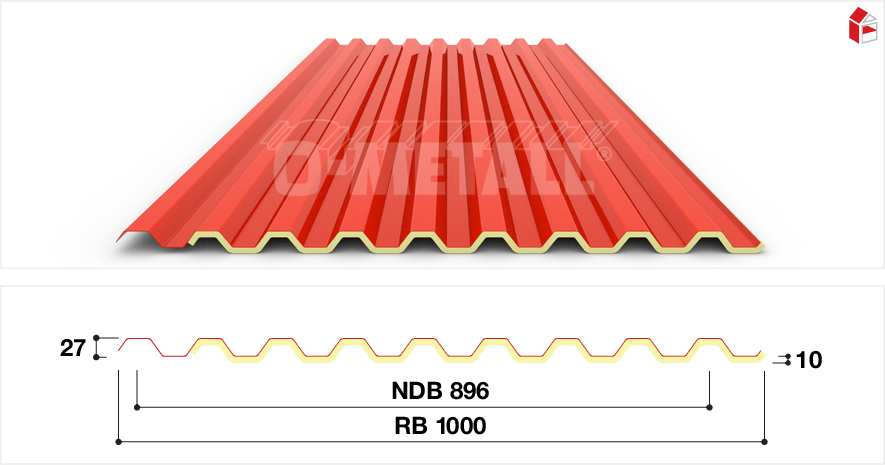

The LIONTEK® TP27 panel with a polyurethane (PUR) underside is an innovative and favourable panel suitable for both roof and wall mounting. Many advantages are combined in one product: an extremely high stability is given by its highly efficient profile geometry and the 10mm polyurethane foam connected shear-resistantly to the upper shell. Furthermore, compared to standard trapezoidal sheets, it has, albeit low, thermal insulation, sound insulation, anti-drip function and is ammonia-resistant on the underside.
In addition to its high stability, it is very light, quick and easy to mount and it offers good resistance to hail. This sandwich panel is delivered with a single shell. On request an aluminium foil (ALF) with a rigid stucco structure can be supplied on the inner side. Because of the special, extra wide and highly weather-resistant overlap geometry, the invoiced panel width is corresponding to the total width (RB).
