PRODUCT PROPERTIES – THE SPECIAL AND UNIQUE LOOK FOR YOUR BUILDING
PROPERTIES UNIT IS30W IS40W IS50W IS60W IS80W IS100W
CORE THICKNESS (h)* mm 30 40 50 60 80 100
U-VALUE W/m².K 0.71 0.44 0.37 0.29 0.27 0.18
*Attention! Our nominal thickness corresponds to the thickness of the isolation. It is measured at the leanest place of the panel.
MAKE A NON-BINDING REQUEST RIGHT NOW
TECHNICAL PROPERTIES
OUTER SHELL LIONTEK®  W1050 Profile, heat-treated fully galvanised steel
Material thicknesses 0.50mm
Colour coating 25μm polyester – brick red
INSULATION CORE HCFC-free polyurethane hard foam (PUR), density approx. 40kg/m³
INNER SHELL Optical profile slightly lined – other on request, heat-treated fully galvanised steel
Material thicknesses 0.40mm
Standard colour coating 25µm polyester – colour white
OTHER The production length is always a multiple of 1050mm
Minimum roof slope 12°
OPTION (on request) Foam back-cut, mounting direction from right to left
Outer shell in aluminium available – colours upon request
PRODUCT CHARACTERISTICS

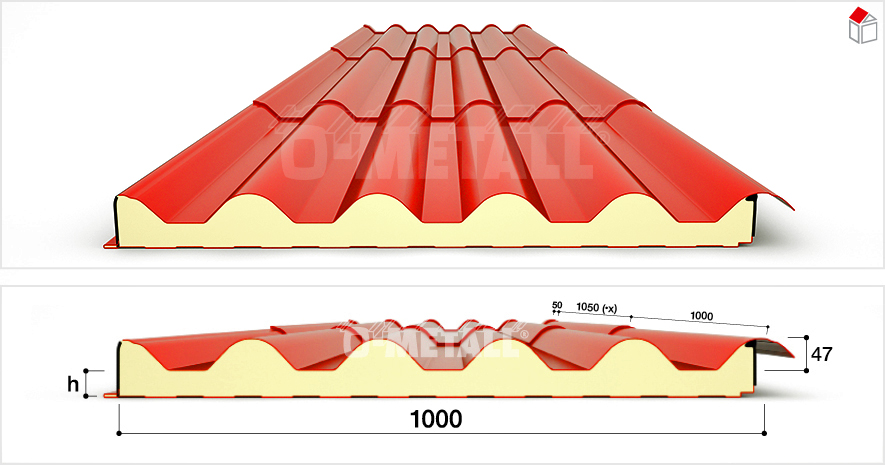

This particularly aesthetic roof profile constitutes a mix of a mediterranean roman roof tile and a frequence profile. It provides your building a unique and special look.
