| PRODUCT PROPERTIES – THE INSULATED METAL TILE | |||||
|---|---|---|---|---|---|
| PROPERTIES | UNIT | IS30EL | IS40EL | IS50EL | IS60EL |
| CORE THICKNESS (h) Ø | mm | 30 | 40 | 50 | 60 |
| U-VALUE | W/m².K | 0.55 | 0.43 | 0.38 | 0.29 |
| *Attention! Our nominal thickness corresponds to the thickness of the isolation. It is measured at the leanest place of the panel. | |||||
MAKE A NON-BINDING REQUEST RIGHT NOW
| TECHNICAL PROPERTIES | |
|---|---|
| OUTER SHELL | Metal roof tile Econoline, heat-treated fully galvanised steel Steel thickness 0.50mm Polyester colour coating (POL) 25µm |
| INSULATION CORE | CFC- and HCFC-free, density approx. 40kg/m³ Polyurethane hard foam (PUR) or polyisocyanurat hard foam (PIR) FPC B-s2,d0 / B-s1,d0, flame retardent |
| INNER SHELL | Optical profile slightly lined (LL), heat-treated fully galvanised steel Polyester coating (POL) similar to white |
| PRODUCTION LENGTHS | From 2.10m to 13.30m Production length is always a multiple of 350mm Special lengths upon request |
| OTHER | Sound insulation: Rw(C:Ctr) according to EN 14509: 24dB |
| OPTION (on request) | Foam cut-back, mounting direction from left to right |
| STANDARD COLOURS | Colour representation is for rough orientation only. Special colours and other coating systems on request. |
PRODUCT CHARACTERISTICS

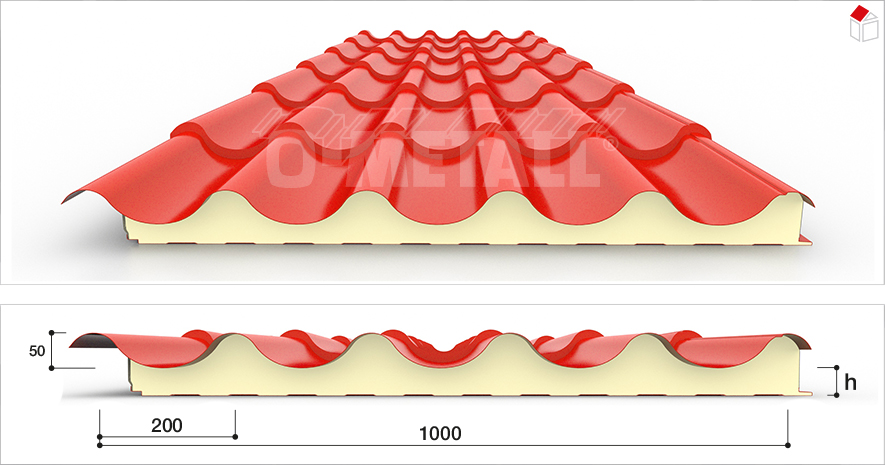

The LIONTEK® ISO-SYSTEM ECONOLINE is a self-supporting, room-closing and heat-insulating metal roof tile. This sandwich panel resembles a classic roof with tiles but with the difference that with our ISO SYSTEM ECONOLINE you get a roof covering with thermal insulation material and an interior ceiling combined in one product. From a mounting but also a financial aspect our product presents more advantages towards a classic tile roof. As a result, it is often preferred to the last-mentioned. The polyisocyanurate rigid foam (PIR) core of our LIONTEK® ISO-SYSTEM ECONOLINE is endlessly and shear-resistantly incorporated between the outer and inner metal covering sheets. This system is highly weather resistant, especially with regard to the climatic extremes that nowadays become more frequent. Notwithstanding, it has a very low dead weight. Of course, on this product safety systems (e.g. for chimney sweeps), snow guard systems and photovoltaic systems can also be installed. In summary, the LIONTEK® ISO-SYSTEM ECONOLINE combines the advantages of a sandwich panel with the beautiful appearance of a roof tile.
